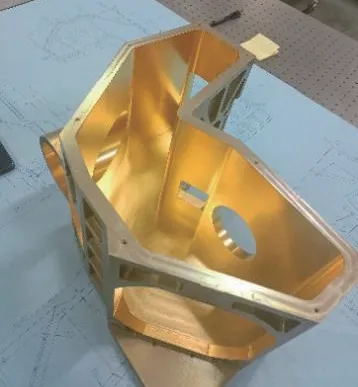

This heavy‑duty 5‑axis precision mounting bracket suits industrial scenarios requiring high load capacity and precision. 5‑axis CNC machining ensures high accuracy for complex structures.
Made of heavy‑duty alloys, it features high rigidity, low deformation, vibration and fatigue resistance. Its optimized structure improves load distribution for mounting and supporting core parts in heavy machinery, automation lines and aerospace systems. Stable long‑term performance boosts equipment reliability and service life.
Technical Specification
|
Feature |
Capability / Specification |
|
Machining Precision |
IT4 – IT5 Grade |
|
Maximum Part Size |
Within 2000 mm |
|
Material Expertise |
Titanium, Aluminum, Carbon Fiber, Invar, AlSiC, Magnesium Alloys |
|
Primary Structures |
Complex frames, shells, high-precision shafts, and gimbal assemblies |
|
Industry Standards |
Aerospace & Defense Grade (National Advanced Level) |
Key Advantages
- Heavy-duty structure with high rigidity and excellent load capacity
- 5-axis machining ensures high precision and complex form capability
- Strong anti-vibration and anti-deformation performance
- Wide material and surface treatment selection
- Customizable design for special equipment and installation spaces
Application
Space & Satellite Systems
High-precision components for space-borne turntables, cameras, and spectrometers.
Airborne Equipment
Machined housings and internal skeletons for airborne optoelectronic pods and gimbal systems.
Defense & Weaponry
Critical structural parts for high-performance military hardware and research institute projects.
Optical-Mechanical Integration
Precision frames that require perfectly matched thermal expansion and structural integrity for sensitive optical paths.
Product Series & Availability
● Precision Machining Capability
Capable of machining shaft parts, rotary table parts and complex structural parts. Complete and reliable process assurance measures, as well as sophisticated processing and inspection methods are available for precision mechanical manufacturing.
● Precision Optical Manufacturing Capability
Capable of manufacturing high-precision lenses for visible light and infrared applications, high-precision prisms and high-precision aspherical components. The company can mass-produce various high-precision optical components including spherical, planar, prismatic, cylindrical and aspherical elements covering the visible to infrared wavebands.
● Precision Opto-Mechanical Assembly Capability
Capable of high-precision shafting assembly and precision optical lens system assembly for visible light and infrared applications. Possesses capabilities in system development, optical testing and integrated alignment.
