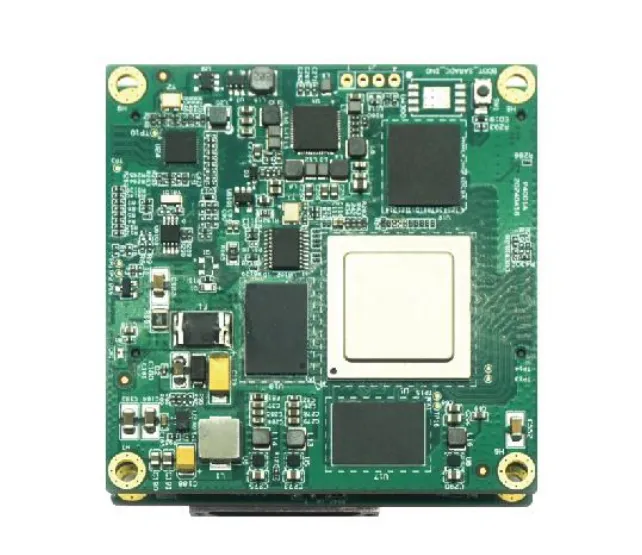

Powered by RK3588, this Rockchip RK3588 Industrial Edge AI Vision Board integrates an 8‑core CPU and 6TOPS NPU to efficiently run AI detection and tracking.It supports SDI/PAL input, 3G‑SDI/HDMI/network output, and 8K H.264/H.265 encoding for full‑link video processing. Rich interfaces enable remote control and data communication.With an ultra‑compact design and wide temperature range (−40°C to +55°C), it simplifies secondary development and speeds up deployment for electro‑optical systems.
Technical Specification
|
Category |
Parameter |
Technical Value |
|
Core Processor |
Model |
Rockchip RK3588 (8nm) |
|
CPU |
8-core 64-bit (4Cortex-A76+4Cortex-A55) |
|
|
NPU |
6TOPS, tri-core; int4/int8/FP16/BF16 supported |
|
|
Memory & Storage |
RAM |
8GB LPDDR4X |
|
Built-in |
64GB eMMC |
|
|
Extended |
SD card slot, max 128GB |
|
|
Multimedia |
Decoding |
H.265/H.264/AV1, up to 8K60FPS |
|
Encoding |
H.264/H.265, up to 8K30FPS |
|
|
Video I/O |
Input |
1×SDI(1080P@60fps)/1×PAL(720x576@25fps) |
|
Output |
1×3G-SDI/1×Micro HDMI |
|
|
Interfaces |
Ethernet |
1×Gigabit adaptive |
|
Serial |
3×RS422(115200bps)/1×RS232 |
|
|
USB |
1×USB3.1 Type-C |
|
|
High-speed |
PCIe3.0/PCIe2.0/SATA3.0 |
|
|
Power Supply |
Voltage |
DC12V±1V |
|
Current |
Max 1.2A, Typical 0.5A |
|
|
Mechanical |
Size |
70×70×17mm (main board) |
|
Environment |
Operating Temp |
-40°C ~ +60°C |
|
System |
OS |
Linux (Ubuntu) |
|
Video API |
V4L2 standard interface |

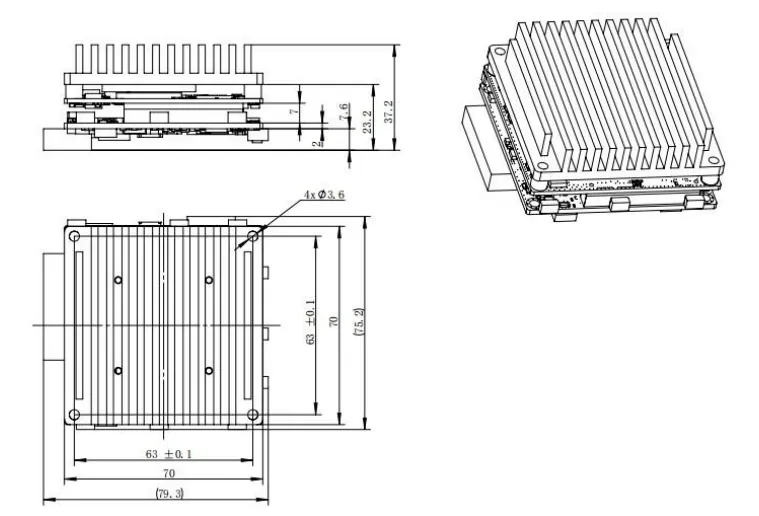

Mechanical Drawing
Application Scenarios
- Photoelectric turret systems (ground/vehicle-mounted)
- Airborne/ship-borne photoelectric pods
- Missile seeker image processing
- Industrial vision detection equipment
- Security monitoring AI processing modules
- Unmanned system visual perception units
Key Functions & Advantages
- High computing power: RK3588 core, 6TOPS NPU for AI vision tasks
- Dual-spectrum input: SDI+PAL, compatible with digital/analog video sensors
- Compact design: 70×70×17mm, perfect for small-space embedded integration
- Strong adaptability: -40°C~+55°C, stable work in extreme temperature environments
- Rich interfaces: Gigabit network/serial ports/high-speed ports, flexible system docking
- Easy development: Complete Linux drivers, standard APIs and algorithm examples
- High video performance: 8K decode/encode, H.264/H.265, low-latency transmission
Product Series & Availability
1. Based on Huawei Ascend 310 and RK3588 series processors, the product line provides computing power ranging from 8TOPS to 176TOPS@INT8. With flexible size and power consumption, it supports intelligent control for unmanned equipment, industrial control and other fields.
2. Its core advantages include 100% domestic and independent‑controllable components, as well as high compatibility. It supports multiple operating systems, mainstream deep‑learning frameworks, abundant interfaces and dual working modes for diversified deployment.
3. Fully certified, the product series meets standard production and storage requirements in operating temperature, ensuring stable performance in harsh environments.
