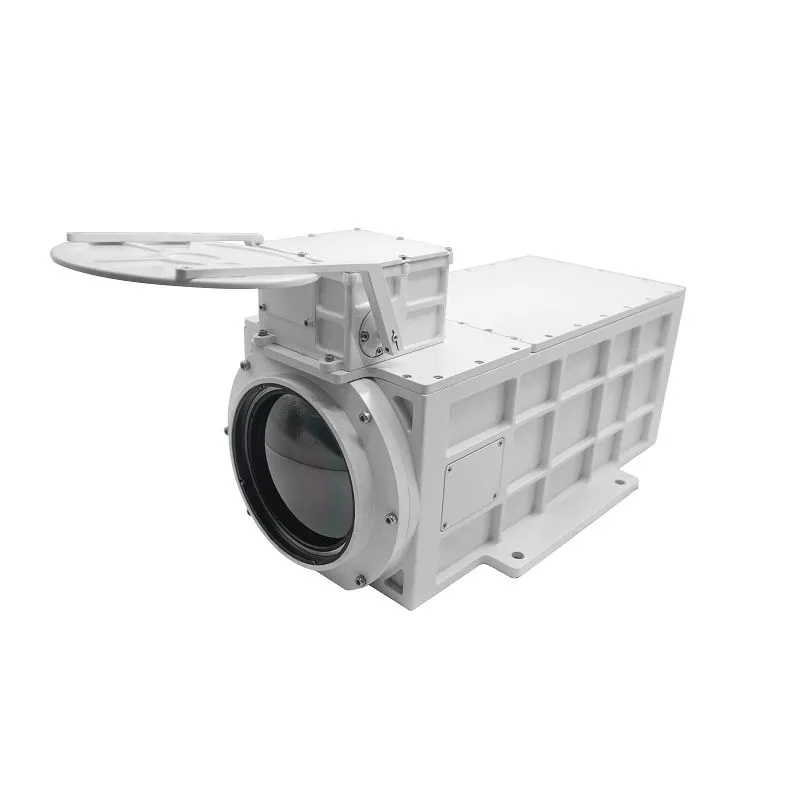

MWIR Thermal Imaging Camera

The MWIR Thermal Imaging Camera is a measurement-grade, Stirling-cooled solution optimized for gas leak detection and high-sensitivity target analysis.
● Uses a cooled 640×512 detector (NETD ≤20mK) to visualize minute gas and thermal signatures.
● Equipped with a 40–200mm motorized lens for seamless wide-to-telephoto monitoring.
● Built-in 3D noise filtering, adaptive correction, and HDR dimming for high-clarity imaging.

Send Inquiry

The F200 MWIR Thermal Imaging Camera features a Stirling-cooled MWIR detector with 640×512 resolution and 15μm pixel pitch, paired with a 40mm–200mm continuous zoom lens. It incorporates intelligent image processing algorithms-including thermal drift suppression, adaptive non-uniformity correction (NUC), 3D image filtering, and image enhancement-to effectively improve measurement stability and imaging quality.

Technical Specification

Category	Parameter	Technical Value
Detector	Resolution	640 × 512
	Pixel Size	15 μm
	Spectral Range	3.7μm ~ 4.8μm (±0.2μm)
	Cooling Method	Stirling Cooled (≤8 min startup @ 25°C)
Optics	Focal Length	40mm ~ 200mm (5x Continuous Zoom)
	F-Number	2.0
	Field of View (FOV)	13.69°×10.97° to 2.75°×2.20°
Performance	Thermal Sensitivity (NETD)	≤ 20mK (@25°C)
	Linearity / Stability	Better than 1%
	Frame Rate	50 Hz
Interfaces	Video Output	SDI (1080P), CameraLink (Base), PAL (Optional)
Interfaces	Communication	RS422
Physical	Dimensions	≤ 400mm × 220mm × 215mm
	Weight	≤ 9 kg
	Operating Temp	-40°C to +60°C

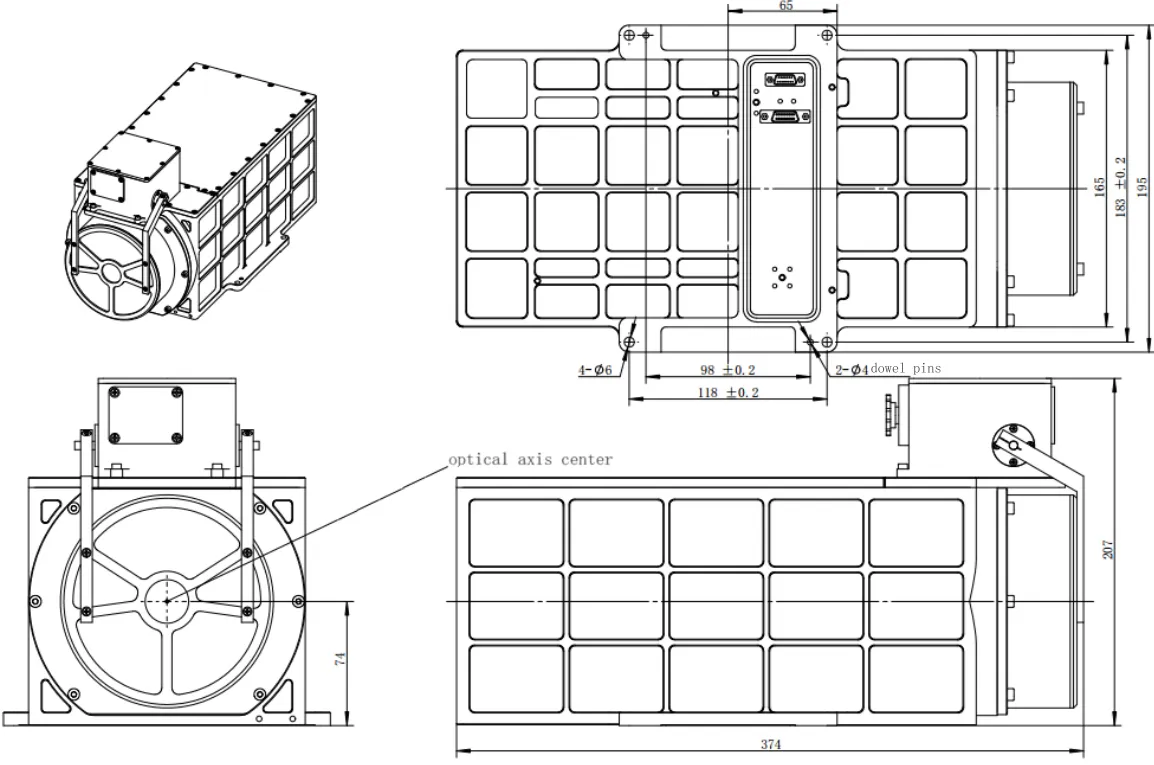

Mechanical Drawing

Key Features & Advantages

Motorized Precision: Features electric zoom, electric focus, and one-click focus for rapid target acquisition.
Adaptive Algorithms: Integrated temperature drift suppression and 3D filtering ensure stable data even during rapid environmental temperature shifts.
Hardware Protection: Equipped with an electric lens cover for optic protection and under-voltage protection for field reliability.
Mirroring & Polarity: Supports horizontal, vertical, and diagonal mirroring as well as multiple display polarity modes.
Sync Options: Switchable internal and external synchronization for complex laboratory or field setups.

Application

Environmental & Safety

Visualization of VOCs and methane leaks in oil, gas, and chemical facilities.

Scientific Research

Infrared radiation characteristic measurement and high-precision thermal profiling.

Target Detection

Precision target tracking and observation when integrated with gimbal or turntable platforms.

Product Series & Availability

We offer a market-leading portfolio of Mid-Wave Infrared (MWIR) solutions, ranging from high-definition continuous zoom systems to cooled engine modules and precision optics.

1. Continuous Zoom MWIR Cameras

Our integrated cooled camera systems provide superior thermal sensitivity and long-range performance.

640 Series (640×512):18–275mm | 40–200mm | 60–360mm | 60–600mm | 100–400mm | 23.2–640mm | 50–900mm| 88–1100mm

1280 Series (1280×1024):25–150mm | 22–720mm | 50–900mm

2. MWIR Camera Engine Modules (Cores)

Resolution Options: Available in 640 × 512 and 1280 × 1024,1280*720 focal plane arrays.

3. Optical Components

MWIR Continuous Zoom Lenses: Available as standalone components for specialized integration.
