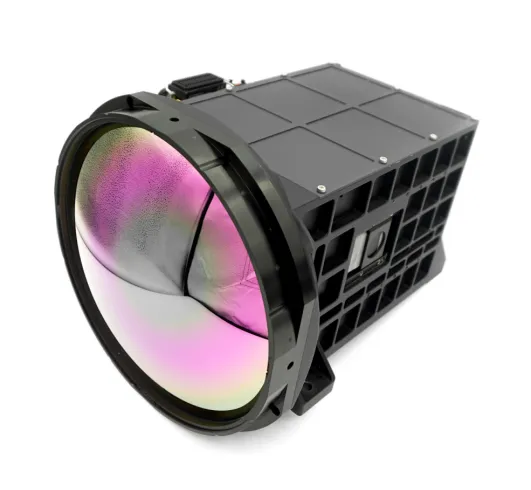

The F900 Infrared Camera consists of a 50mm–900mm large-ratio continuous zoom lens and a high-sensitivity 640*512 @ 15μm Stirling cooled MWIR imaging component. It features embedded image processing algorithms-including adaptive non-uniformity correction (NUC), image filtering, adaptive high-dynamic-range (HDR) imaging, and image enhancement-to effectively improve overall image quality.
Technical Specification
|
Category |
Parameter |
Technical Value |
|
Detector |
Resolution |
640 x 512 |
|
Pixel Size |
15 um |
|
|
Spectral Range |
3.7um to 4.8um |
|
|
Cooling Method |
Stirling Cooled |
|
|
Optics |
Focal Length |
50mm to 900mm (18x Continuous Zoom) |
|
Aperture |
F4.0 |
|
|
Field of View (FOV) |
10.97 ° x 8.78 ° to 0.61 ° x 0.49 ° |
|
|
Performance |
Thermal Sensitivity (NETD) |
≤ 20mK @ 25℃ |
|
Optical Axis Stability |
≤ 2 Pixels |
|
|
Output Frame Rate |
50 Hz |
|
|
Interfaces |
Video Output |
SDI (1080P), CameraLink, PAL (Optional) |
|
Communication |
RS422 |
|
|
Physical |
Dimensions |
<= 360mm x 280mm x 240mm |
|
Weight |
<= 15 kg |
|
|
Power Supply |
DC 28V +/- 4V |
Key Features & Advantages
Motorized Precision
Supports electric zoom, motorized focus, and rapid one-click focusing for accurate target acquisition.
Display Versatility
Supports horizontal, vertical, and diagonal mirroring as well as manual/automatic brightness and contrast adjustment.
System Reliability
Built-in hardware protection and support for system diagnostics and program upgrades via serial port.
Multi-Interface Connectivity
Equipped with a J30J-25ZKP connector for power/communication and an HJ30J-18ZKP for high-bandwidth CameraLink data.
Application
- Anti-UAV & Drone Detection: Its long focal length and high sensitivity make it ideal for detecting and tracking micro-unmanned aerial vehicles (UAVs) at great distances.
- Critical Infrastructure Defense: Provides 24/7 high-precision surveillance for airports, power plants, and government facilities.
- Border & Coastal Surveillance: Penetrates atmospheric haze and sea spray to identify threats and illegal crossings in harsh environments.
- Forest Fire Prevention: Detects early-stage heat signatures and hotspots through smoke to prevent large-scale fire outbreaks.
- Search & Rescue: Identifies human heat signatures in complex terrains or maritime environments, even in complete darkness.
- Industrial Safety: High-end industrial monitoring for leak detection and predictive maintenance of high-value equipment.
Product Series & Availability
We offer a market-leading portfolio of Mid-Wave Infrared (MWIR) solutions, ranging from high-definition continuous zoom systems to cooled engine modules and precision optics.
1. Continuous Zoom MWIR Cameras
Our integrated cooled camera systems provide superior thermal sensitivity and long-range performance.
640 Series (640×512):18–275mm | 40–200mm | 60–360mm | 60–600mm | 100–400mm | 23.2–640mm | 50–900mm| 88–1100mm
1280 Series (1280×1024):25–150mm | 22–720mm | 50–900mm
2. MWIR Camera Modules (Cores)
Resolution Options: Available in 640 × 512 and 1280 × 1024,1280*720 focal plane arrays.
3. Optical Components
MWIR Continuous Zoom Lenses: Available as standalone components for specialized integration.
