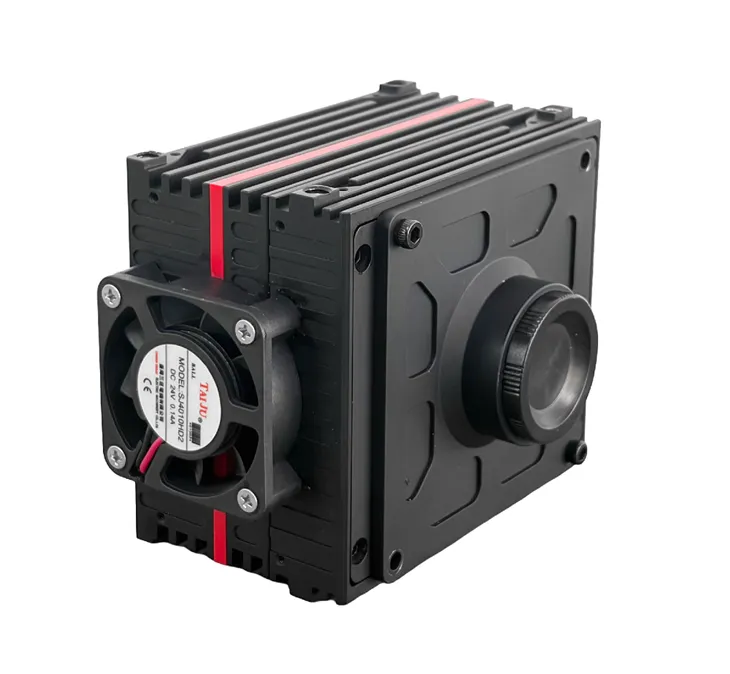

The high frame rate SWIR Area Scan camera core features a high-performance InGaAs focal plane array (FPA) with integrated TEC cooling. It offers 640 x 512 resolution with a 15μm pixel pitch and a spectral response from 0.9μm to 1.7μm. The thermoelectric cooling ensures stable operation within an optimal temperature range, significantly reducing readout noise. Built with an integrated, modular design, the core supports Camera Link video output for seamless system integration.
Technical Specification
|
|
Parameter |
Specifications |
|
Sensor |
Resolution |
640×512 |
|
Pixel Pitch |
15 μm |
|
|
Spectral range |
0.9 μm~1.7 μm |
|
|
Sensor material |
InGaAs |
|
|
Cooling method |
TEC |
|
|
Dynamic range |
65dB(LG),55dB(MG) |
|
|
Readout noise |
500e(LG),60e(MG) |
|
|
Full Well Capacity |
2.2Me(LG),90Ke(MG) |
|
|
Dark current |
30fA @ 0.1V&18℃ |
|
|
Interfaces & video |
Video output |
CameraLink |
|
Frame rate |
500Hz/400Hz |
|
|
Communication |
RS422 |
|
|
External Sync |
RS422 |
|
|
Integration time |
adjustable(auto/manual) |
|
|
Digital zoom |
×2 / ×4 |
|
|
Power supply |
DC24V ± 1V,2A |
|
|
Power consumption |
≤20W@25℃(Steady State) |
|
|
Environmental performance |
Operating Temperature |
-40℃~+60℃ |
|
Physical features |
Dimensions (L×W×H) |
≤104×80×68(with C-mount, excl. connectors) |
|
Weight |
≤0.6kg |
Application Scenarios
Industrial Inspection
Semiconductor wafer testing, material screening, and machine vision.
Defense & Security
Border and coastal defense, camouflage target recognition, and long-range monitoring.
Scientific Research
Astronomical imaging, laser spot detection, and biomedical research.
Key Functions & Advantages
- Exposure Control: Features both manual and automatic exposure and integration time adjustment.
- Digital Zoom: Built-in electronic zoom capabilities of ×2 and ×4.
- Image Mirroring: Supports horizontal, vertical, and diagonal mirroring functions.
- Hardware Protection: Equipped with under-voltage and reverse-polarity protection for enhanced field reliability.
- Diagnostics & Testing: Supports real-time status queries and outputs test patterns such as checkerboards and grayscale.
Product Series & Availability
We offer a variable interface of SWIR module to meet diverse application requirements.
- Cameralink: High-speed 200Hz, 400Hz, and 500Hz Camera Link digital output modules.
- Cameralink +pal: Combined standard digital output with an analog PAL interface.
- SDI+Pal: Professional SDI digital output (720P) paired with an analog PAL interface.
In addition to our modules, we provide various integrated solutions and components:
- SWIR lens system:A full range of SWIR-optimized lenses
- Full SWIR cameras:Available in Zoom SWIR Camera and Fixed SWIR Camera configurations.
