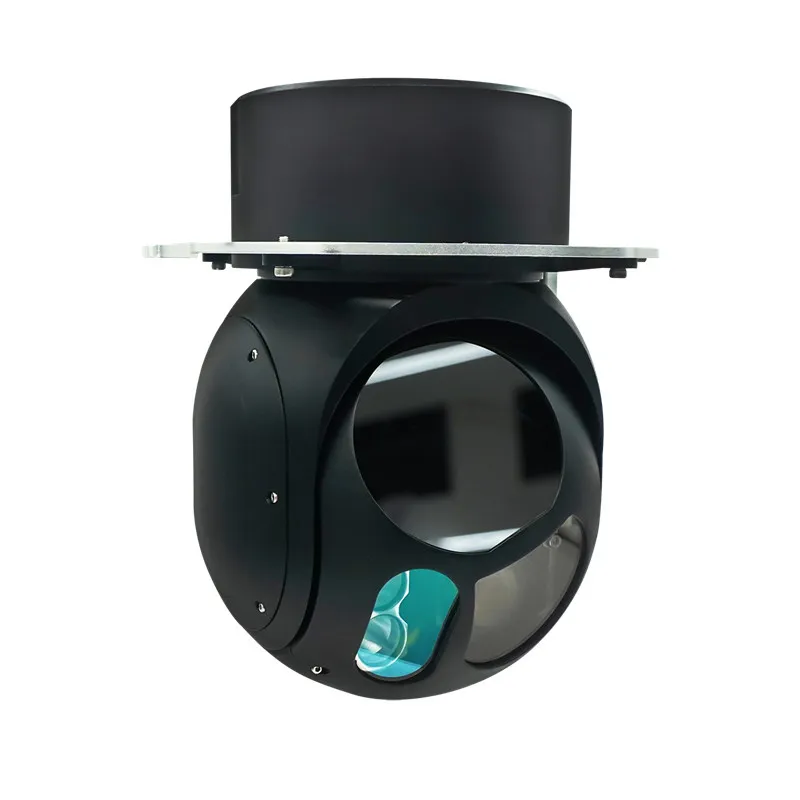

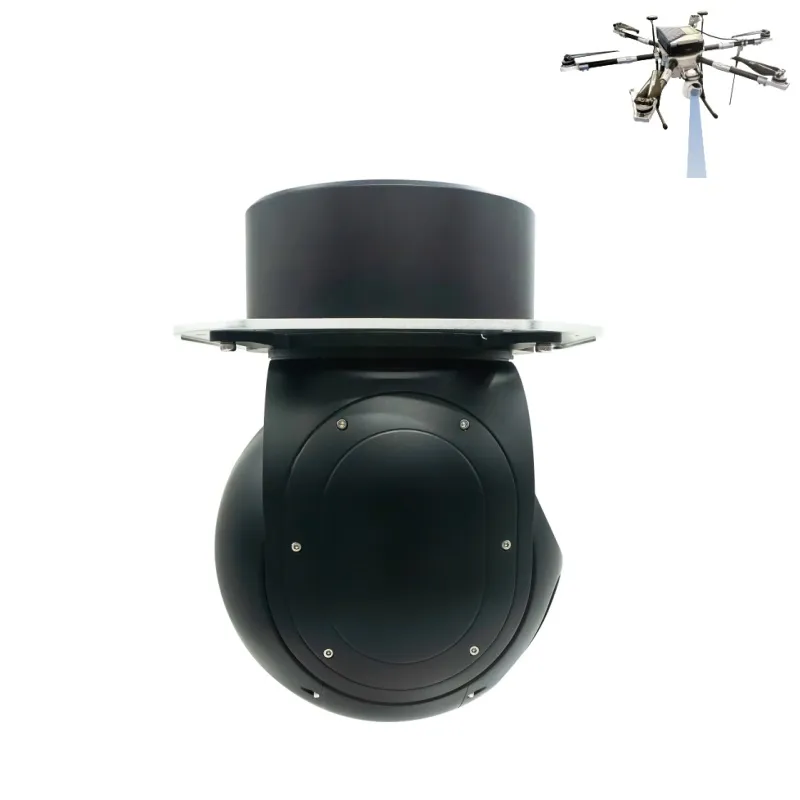

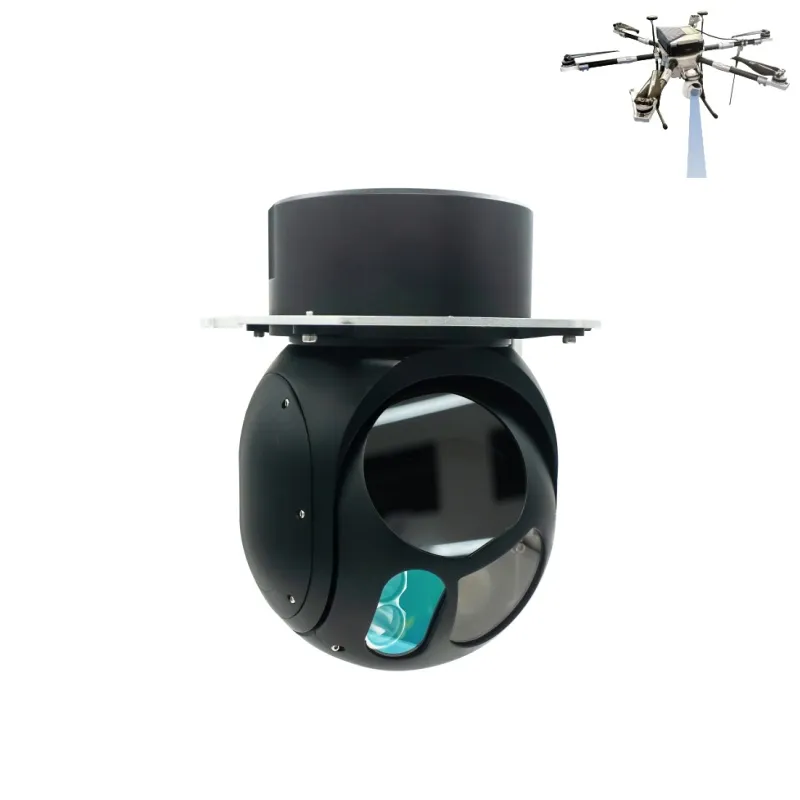

This 2‑axis stabilized EO pod sets a new standard for compact optical systems. Equipped with a 1080P visible camera and long‑wave uncooled thermal imager, it detects targets missed by ordinary sensors.
Weighing under 4 kg with a durable lightweight structure, it integrates easily with most UAVs. It supports area scanning, azimuth‑elevation tracking, and real‑time angle, position and speed output.
Sealed and nitrogen‑filled with lightning‑proof and rainproof features, it operates reliably in harsh environments.
Technical Specification
|
Category |
Parameter |
Technical Value |
| General |
System Type / Weight |
2-axis gyro-stabilized / ≤4kg |
|
Dimensions |
≤φ180mm × 260mm |
|
|
Stabilization Accuracy |
≤100μrad |
|
|
Video / Communication |
Ethernet Port / RS232, Ethernet |
|
|
Visible Light (EO) |
Resolution / Band |
1920 × 1080 / 0.4～0.7μm |
|
Focal Length Range |
4.3～129mm (Continuous Zoom) |
|
|
Vehicle Recognition |
≥7km (Visibility ≥20km, RH ≤70%) |
|
|
Infrared (IR) |
Resolution / Band |
640 × 512 / 8～12μm (Uncooled) |
|
Focal Length / FOV |
60mm@F1.0 / 7.3° × 5.8°(±5%) |
|
|
Vehicle Detection |
≥4.0km |
|
|
Laser Rangefinder |
Wavelength / Distance |
1535nm / ≥5.0km |
|
Ranging Accuracy |
±2m (RMS) |
|
|
Environment |
Operating Temperature |
-20℃ to +50℃ |
|
Protection |
Lightning Protection & Rain Test Certified |
Mechanical Drawing
Key Capabilities
- Multi-Mode Tracking: Capable of stable tracking for both ground and aerial targets with real-time angular data output.
- Information Superposition: Supports the overlay of relevant mission data and targeting crosshairs directly onto the output images.
- Advanced Scanning: Supports autonomous search and scanning functions for designated operational areas.
- Reliable Power Design: Compatible with standard 24VDC (19~32VDC range) with under-voltage and peak power protection.
- Robust Mechanical Interface: Connected via professional shock absorbers to ensure image stability during high-vibration scenarios.
Application
Defense & Security
Border and coastal defense, long-range security monitoring, and airborne reconnaissance.
Search & Rescue
Rapid target identification and localization in complex disaster or remote environments.
Intelligence Gathering
All-weather surveillance and target tracking for military and tactical operations.
UAV Missions
Ideal for fixed-wing and multi-rotor drones requiring precision stabilized imaging.
Product Series & Availability
We offer 1.5kg and 4kg pod models, flexible for different loads, scenarios and installations to meet diverse needs.
The integrated infrared module performs stably with strong adaptability. It can be used as a standard part or sold separately for easy integration, replacement, upgrade and secondary development.
We provide professional customized pod housing processing per customer drawings, materials and standards, supporting design, prototyping and mass production as a one-stop solution.
