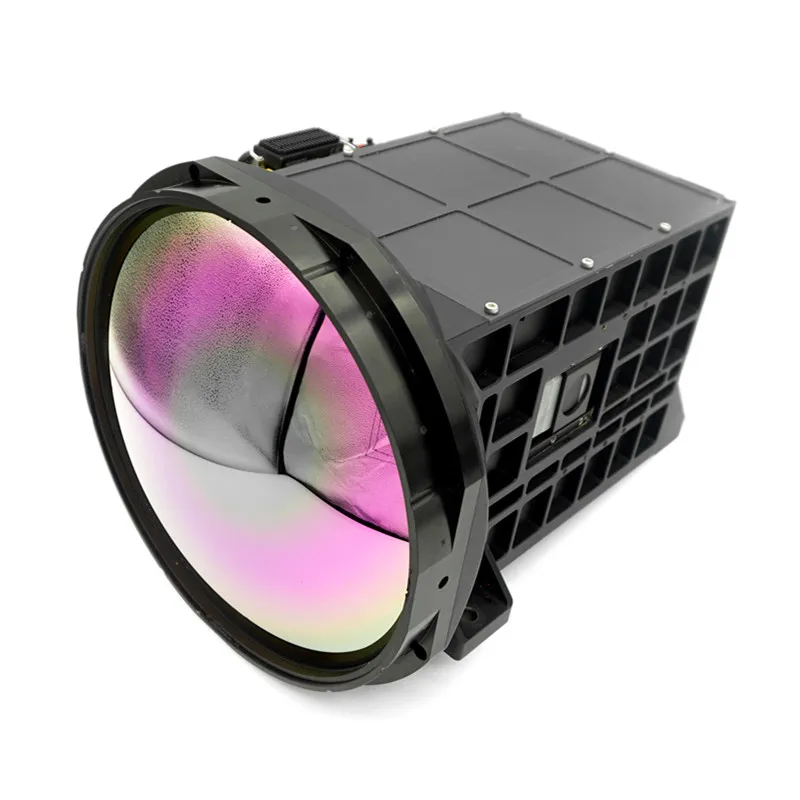

The F900 1280 HD Cooled Thermal Camera consists of a 50mm–900mm large-ratio continuous zoom lens and a high-sensitivity 1280×1024 @ 12μm Stirling cooled MWIR imaging component. It features embedded image processing algorithms-including adaptive non-uniformity correction (NUC), image filtering, adaptive high-dynamic-range (HDR) imaging, and image enhancement-to effectively improve overall image quality.
Technical Specification
|
Category |
Parameter |
Technical Value |
|
Detector |
Resolution |
1280 x 1024 |
|
Pixel Size |
15 um |
|
|
Spectral Range |
3.7um to 4.8um |
|
|
Cooling Method |
Stirling Cooled (≤ 8.5 min startup) |
|
|
Optics |
Focal Length |
50mm to 900mm (18X Continuous Zoom) |
|
F-Number |
4.0 |
|
|
Field of View (FOV) |
21.74 ° x 17.47 ° to 1.22 ° x 0.98 ° |
|
|
Performance |
Thermal Sensitivity (NETD) |
≤ 25mK @ 25℃ |
|
Optical Axis Stability |
≤ 2 Pixels |
|
|
Output Frame Rate |
30 Hz (CameraLink) / 25 Hz (SDI) |
|
|
Interfaces |
Video Output |
SDI (1080P), CameraLink (Base Mode) |
|
Communication |
RS422 |
|
|
Physical |

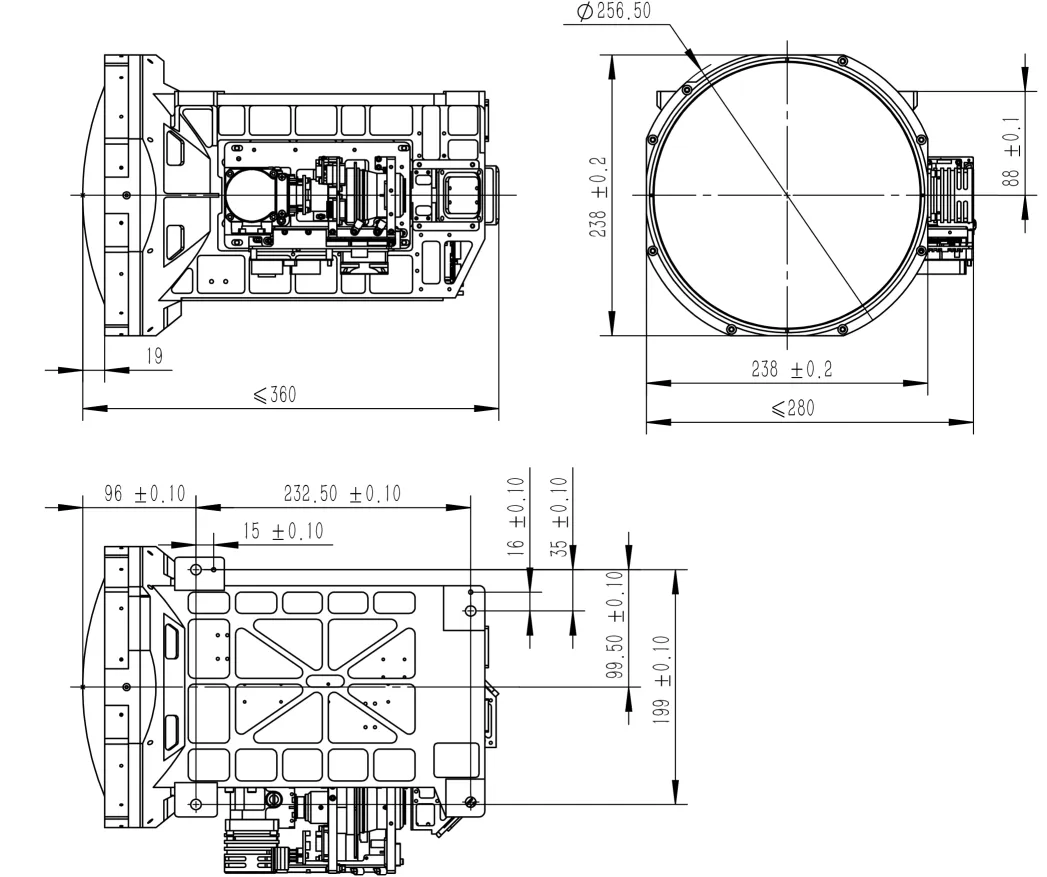

Dimensions |
≤ 360mm x 280mm x 240mm |
|
Weight |
≤ 15 kg |
|
|
Power Supply |
DC 28V +/- 4V |
Key Features & Advantages
- Motorized Precision: Supports electric zoom, motorized focus, and rapid one-click focusing for accurate target acquisition.
- Display Versatility: Supports horizontal, vertical, and diagonal mirroring as well as manual/automatic brightness and contrast adjustment.
- Hardware Reliability: Built-in hardware protection and support for system diagnostics and program upgrades via serial port.
- Advanced Control: Features switchable internal and external synchronization to match complex laboratory or field setups.
- Multi-Interface Output: High-bandwidth SDI and CameraLink outputs for professional-grade digital and analog connectivity.
Application
- Aerial Reconnaissance: High-definition thermal imaging for airborne pods, gimbals, and UAV platforms.
- Micro-UAV Detection: Long-range tracking and identification of small unmanned aerial systems.
- Border & Coastal Defense: 24/7 high-precision surveillance for borders and vital coastal areas.
- Critical Infrastructure Security: Protecting airports, power plants, military bases, and government facilities.
- Forest Fire Prevention: Early detection of heat signatures and hotspots through atmospheric smoke and haze.
Product Series & Availability
We offer a market-leading portfolio of Mid-Wave Infrared (MWIR) solutions, ranging from high-definition continuous zoom systems to cooled engine modules and precision optics.
1. Continuous Zoom MWIR Cameras
Our integrated cooled camera systems provide superior thermal sensitivity and long-range performance.
640 Series (640×512):18–275mm | 40–200mm | 60–360mm | 60–600mm | 100–400mm | 23.2–640mm | 50–900mm| 88–1100mm
1280 Series (1280×1024):25–150mm | 22–720mm | 50–900mm
2. MWIR Camera Modules (Cores)
Resolution Options: Available in 640 × 512 and 1280 × 1024,1280*720 focal plane arrays.
3. Optical Components
MWIR Continuous Zoom Lenses: Available as standalone components for specialized integration.
