F2 Continuous Zoom Short-wave Infrared Camera

The Zoom SWIR Camera uses an InGaAs detector and a long-range lens for high-precision surveillance in the 0.9μm to 1.7μm range.
● Features a 40-320mm continuous lens for seamless transitions from wide-area monitoring to detailed target inspection.
● Actively regulates temperature to minimize noise and dark current.
● Advanced algorithms handle pixel correction, filtering, and digital image sharpening.

Send Inquiry

The F2 Continuous zoom short-wave infrared camera represents a breakthrough in integrated infrared sensing. By combining a 640x512 resolution InGaAs detector with a 15μm pixel pitch and a high-precision motorized zoom lens, the zoom short-wave infrared camera excels in identifying targets that are invisible to the naked eye or standard thermal cameras.

Its modular design is optimized for high signal-to-noise ratios and low noise performance. The system is highly effective at penetrating atmospheric challenges such as fog, smoke, and haze. With advanced functions like one-click focus and electric zoom/focus, operators can rapidly respond to fast-changing environments in both industrial and security sectors.

Technical Specification

Category	Parameter	Technical Value
Detector	Resolution	640 × 512
	Pixel Size	15 μm
	Spectral Range	0.9 μm ~ 1.7 μm
	Cooling Method	TEC Cooling
Optics	Focal Length	40mm ~ 320mm (Continuous Zoom)
	Aperture	F2.2
	Field of View (FOV)	1.72°×1.38° ~ 13.69°×10.97°
Performance	Dynamic Range	65 dB (LG) / 55 dB (MG)
	Max SNR	65 dB (LG) / 55 dB (MG)
	Output Frame Rate	50 Hz
Interfaces	Video Output	HD-SDI (720P)
Interfaces	Communication	RS422
Electrical	Power Supply	DC 12V ± 1V
Electrical	Power Consumption	≤ 25 W @ 25°C
Physical	Dimensions	≤ 530 mm × 240 mm × 228 mm
Physical	Weight	≤ 25 kg

Mechanical Drawing

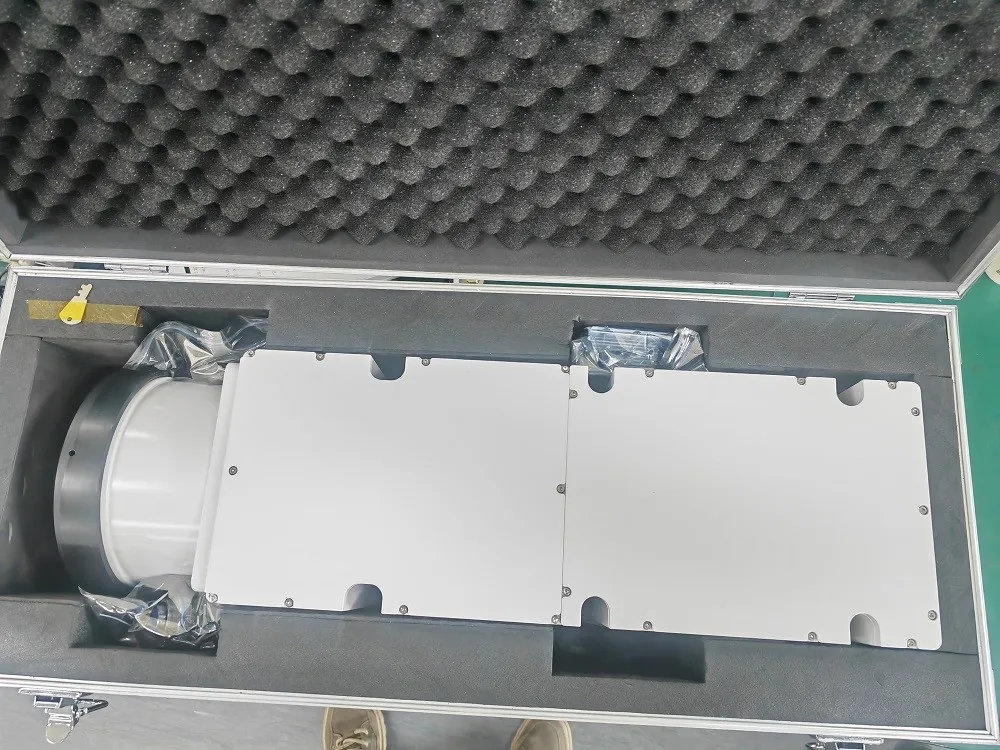

F2 40320mm

Application Scenarios

Defense & Security

Border and coastal defense, long-range security monitoring, and laser detection.

Industrial Inspection

Semiconductor inspection, material screening, and machine vision.

Scientific Research

Astronomical imaging, biomedical applications, and general scientific research.

Key Functions & Advantages

Motorized Control: Features electric zoom, electric focus, and a convenient one-click focus function.
Adaptive Imaging: Manual and automatic integration time and gain adjustment to suit any lighting condition.
Flexible Display: Supports horizontal, vertical, and diagonal mirroring; black-hot/white-hot polarity switching; and crosshair cursor overlay.
System Intelligence: Mechanism working status query and built-in test images (chessboard and grayscale patterns).
Hardware Protection: Integrated under-voltage and reverse polarity protection for enhanced field reliability.

Product Series & Availability

We offer a variable interface of SWIR module to meet diverse application requirements.

Cameralink: High-speed 200Hz, 400Hz, and 500Hz Camera Link digital output modules.
Cameralink +pal: Combined standard digital output with an analog PAL interface.
SDI+Pal: Professional SDI digital output (720P) paired with an analog PAL interface.

In addition to our modules, we provide various integrated solutions and components:
