20x SWIR Zoom Camera

The 20x SWIR Zoom Camera is a high-performance InGaAs imaging system designed for precision and reliability in the 0.9μm to 1.7μm range.
● Features a 15–300mm continuous zoom lens for high-definition clarity at any distance.
● Integrated TEC technology lowers readout noise and dark current for cleaner images.
● Provides a 65dB dynamic range and adaptive algorithms for uniform, high-quality visuals.

Send Inquiry

The 20x SWIR Zoom Camera represents a pinnacle in integrated short-wave infrared sensing. By combining a 640×512 resolution InGaAs detector with a 15μm pixel pitch and a high-precision motorized zoom lens, this camera excels in identifying targets invisible to the naked eye or standard thermal cameras.

The system is highly effective at penetrating atmospheric challenges such as fog, smoke, and haze. It also possesses the unique ability to image through common glass and silicon wafers, making it indispensable for border defense, laser detection, and industrial monitoring. With advanced functions like one-click focus and electric zoom/focus, operators can rapidly respond to fast-changing environments.

Technical Specification

Category	Parameter	Technical Value
Detector	Resolution	640 × 512
	Pixel Size	15 μm
	Spectral Range	0.9 μm ~ 1.7 μm
	Cooling Method	TEC Cooling
Optics	Focal Length	15 (±5%) mm ~ 300 (±5%) mm
	Aperture	F4
	Field of View (FOV)	1.84°×1.37° ~ 35.5°×27°
Performance	Dynamic Range	65 dB (LG) / 55 dB (MG)
Performance	Output Frame Rate	50 Hz (720P)
Interfaces	Video Output	HD-SDI
Interfaces	Communication	RS422
Electrical	Power Supply	DC 12V ± 1V
Electrical	Power Consumption	≤ 25 W @ 25°C
Physical	Dimensions	≤ 410 mm × 184 mm × 172 mm
Physical	Weight	≤ 7.5 kg

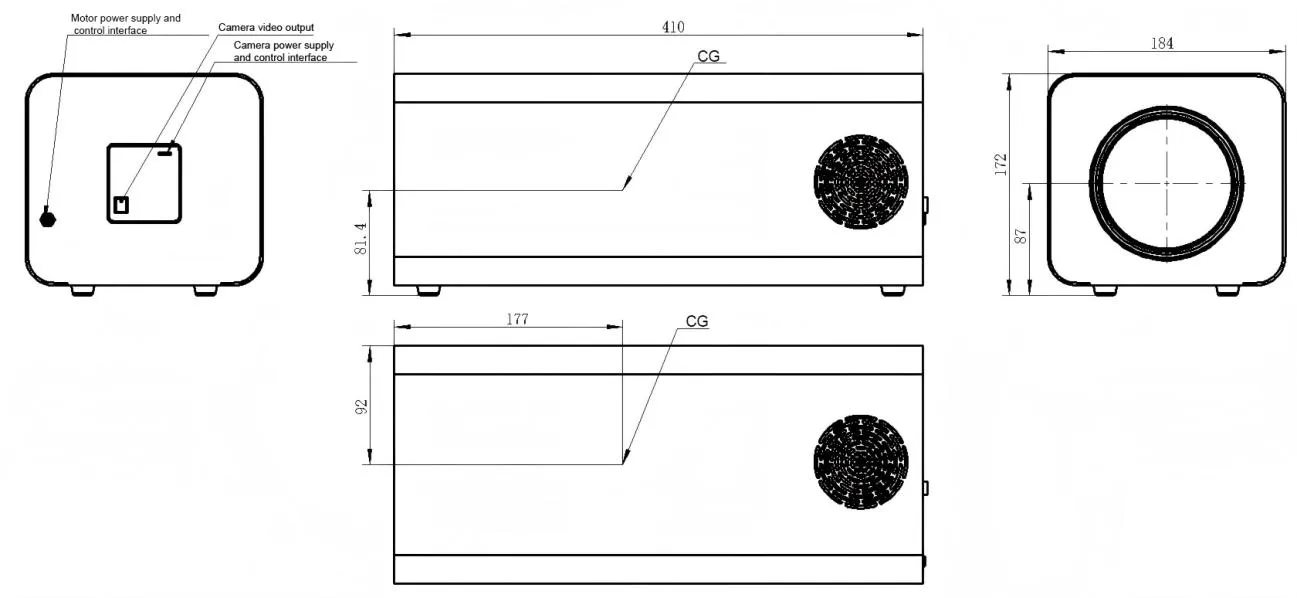

drawing

Application Scenarios

Defense & Security

Border and coastal defense, camouflage target recognition, and long-range security monitoring.

Industrial Inspection

Semiconductor inspection, silicon wafer imaging, and machine vision.

Research

Astronomical imaging, laser spot detection, and scientific research.

Key Functions & Advantages

Motorized Control: Features electric zoom, electric focus, and a convenient one-click focus function.
Adaptive Imaging: Manual and automatic integration time and gain adjustment to suit any lighting condition.
Digital Zoom: Built-in electronic zoom capabilities of ×2 and ×4.
Display Versatility: Supports horizontal, vertical, and diagonal mirroring; black-hot/white-hot polarity switching; and crosshair cursor overlay.
Hardware Protection: Integrated under-voltage and reverse polarity protection for enhanced field reliability.
