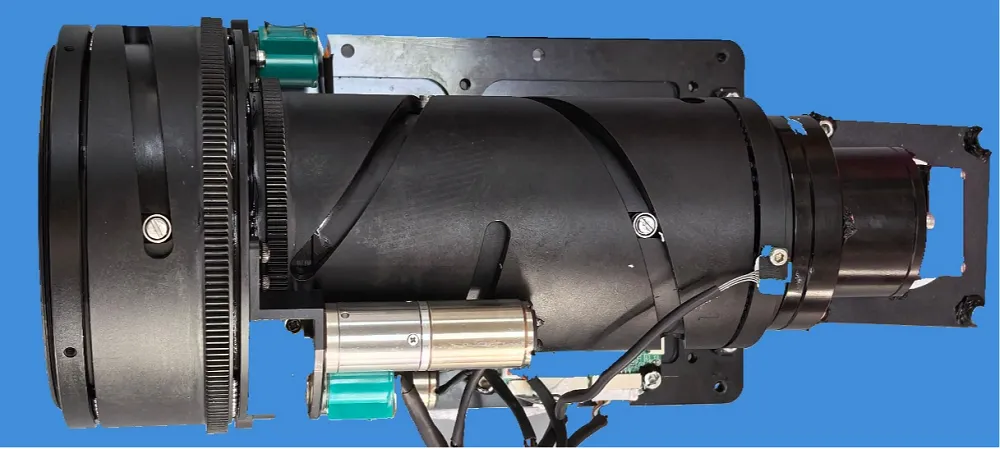

The Shortwave Infrared Imager from LEADIR represents a pinnacle in integrated sensing. By combining a 640×512 resolution InGaAs detector with a 15μm pixel pitch and a high-precision motorized zoom lens, this camera excels in identifying targets that are invisible to the naked eye or standard thermal cameras.
The system is highly effective at penetrating atmospheric challenges such as fog, smoke, and haze. It also possesses the unique ability to image through common glass and silicon wafers, making it indispensable for long-range surveillance, laser detection, and industrial monitoring. With advanced functions like one-click focus and electric zoom/focus, operators can rapidly respond to fast-changing environments.
Technical Specification
|
Category |
Parameter |
Technical Value |
|
Detector |
Resolution |
640 × 512 |
|
Pixel Size |
15 μm |
|
|
Spectral Range |
0.9 μm ~ 1.7 μm |
|
|
Cooling Method |
TEC Cooling |
|
|
Optics |
Focal Length |
30mm (±5%) ~ 390mm (±5%) |
|
Aperture |
F5 ~ F7 |
|
|
Field of View (FOV) |
1.4°×1.13° ~ 18.2°×14.6° |
|
|
Performance |
Dynamic Range |
65 dB (LG) / 55 dB (MG) |
|
Output Frame Rate |
50 Hz (720P) |
|
|
Interfaces |
Video Output |
HD-SDI |
|
Communication |
RS422 |
|
|
Electrical |
Power Supply |
DC 12V ± 1V |
|
Power Consumption |
≤ 25 W @ 25°C |
|
|
Physical |
Dimensions |
≤ 260 mm × 110 mm × 100 mm |
|
Weight |
≤ 2.9 kg |
Application Scenarios
Defense & Security
Border and coastal defense, camouflage target recognition, and long-range security monitoring.
Industrial Inspection
Semiconductor inspection, silicon wafer imaging, and machine vision.
Research
Astronomical imaging, laser spot detection, and scientific research.
Key Functions & Advantages
- Motorized Control: Features electric zoom, electric focus, and a convenient one-click focus function.
- Adaptive Imaging: Manual and automatic integration time and gain adjustment to suit any lighting condition.
- Digital Zoom: Built-in electronic zoom capabilities of ×2 and ×4.
- Display Versatility: Supports horizontal, vertical, and diagonal mirroring; black-hot/white-hot polarity switching; and crosshair cursor overlay.
- Hardware Protection: Integrated under-voltage and reverse polarity protection for enhanced field reliability.
Product Series & Availability
We offer a comprehensive range of SWIR solutions, from high-precision continuous zoom cameras to high-speed engine modules and core components.
1. SWIR Cameras
Our integrated zoom cameras provide seamless transitions for long-range imaging. Available focal lengths:
Fix focal length:12mm|25mm|50mm|100mm|500mm
Compact & Mid-Range: 15–300mm | 20–260mm | 30–390mm | 40–320mm
Ultra Long-Range: 88–1200mm
2. SWIR Camera Modules
Versatile engine modules for seamless system integration:
High-Speed Camera Link: Digital output supporting 200Hz, 400Hz, and 500Hz.
Dual-Mode Camera Link + PAL: Combined digital and analog PAL output.
Professional SDI + PAL: HD-SDI (720P) digital output paired with analog PAL.
3. Core Components & Optics
Standard and custom building blocks for SWIR technology:
InGaAs Sensors: High-resolution 640 × 512 and 1280 × 1024 focal plane arrays.
SWIR-Optimized Lenses: Full selection of Motorized Zoom and Fixed Focal Length optics.
