The F1200 continuous zoom short-wave infrared camera utilizes an InGaAs focal plane TEC (Thermoelectric Cooler) cooled detector, with a resolution of 640x512 pixels and a pixel pitch of 15μm. It operates in the wavelength range of 0.9μm to 1.7μm. Equipped with TEC cooling technology, the camera further reduces readout noise. The system adopts an integrated, modular design and is configured with an 88-1200mm continuous zoom lens, supporting SDI + PAL video output.
Technical Specification
|
Category |
Parameter |
Technical Value |
|
Detector |
Resolution |
640 × 512 |
|
Pixel Size |
15 μm |
|
|
Spectral Range |
0.9 μm ~ 1.7 μm |
|
|
Cooling Method |
TEC Cooling |
|
|
Optics |
Focal Length |
88 (±5%) mm ~ 1200 (±5%) mm (Continuous Zoom) |
|
Aperture |
F5.9 ~ 10 |
|
|
Field of View (FOV) |
6.24°×4.99° (@88mm) ~ 0.45°×0.36° (@1200mm) |
|
|
Performance |
Dynamic Range |
65 dB (LG) / 55 dB (MG) |
|
Max SNR |
65 dB (LG) / 55 dB (MG) |
|
|
Output Frame Rate |
SDI: 50 Hz / PAL: 25 Hz |
|
|
Interfaces |
Video Output |
SDI / PAL |
|
Communication |
RS422 |
|
|
Electrical |
Power Supply |
DC 24V ± 1V, 2 A |
|
Power Consumption |
≤ 12 W @ 25°C (Steady-state) |
|
|
Physical |

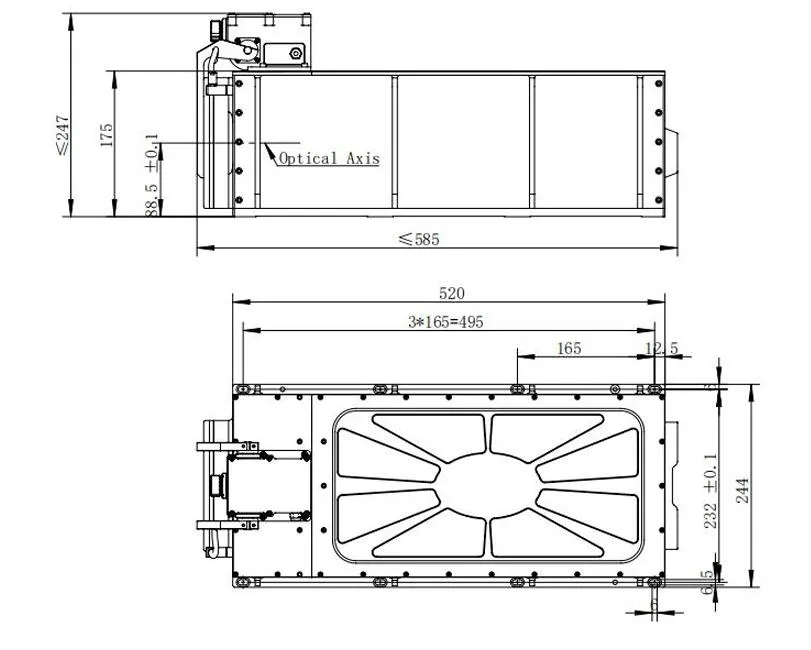

Dimensions |
≤ 585 mm × 244 mm × 247 mm |
|
Weight |
≤ 25 kg |
|
|
IP Rating |
IP66 |
Application Scenarios
Defense & Security
Border and coastal defense, long-range security monitoring, and laser detection.
Industrial Inspection
Semiconductor inspection, material screening, and machine vision.
Scientific Research
Astronomical imaging, biomedical applications, and general scientific research.
Key Functions & Advantages
- Motorized Control: Features electric zoom, electric focus, and a convenient one-click focus function.
- Adaptive Imaging: Manual and automatic integration time and gain adjustment to suit any lighting condition.
- Flexible Display: Supports horizontal, vertical, and diagonal mirroring; black-hot/white-hot polarity switching; and crosshair cursor overlay.
- Hardware Protection: Integrated under-voltage and reverse polarity protection, plus an electric lens cover for optic protection.
- Digital Zoom: Built-in electronic zoom capabilities of ×2 and ×4
Product Series & Availability
We offer a variable interface of SWIR module to meet diverse application requirements.
- Cameralink: High-speed 200Hz, 400Hz, and 500Hz Camera Link digital output modules.
- Cameralink +pal: Combined standard digital output with an analog PAL interface.
- SDI+Pal: Professional SDI digital output (720P) paired with an analog PAL interface.
In addition to our modules, we provide various integrated solutions and components:
- Optical Components:A full range of SWIR-optimized lenses
- Full SWIR cameras:Available in Zoom SWIR Camera and Fixed SWIR Camera configurations.
