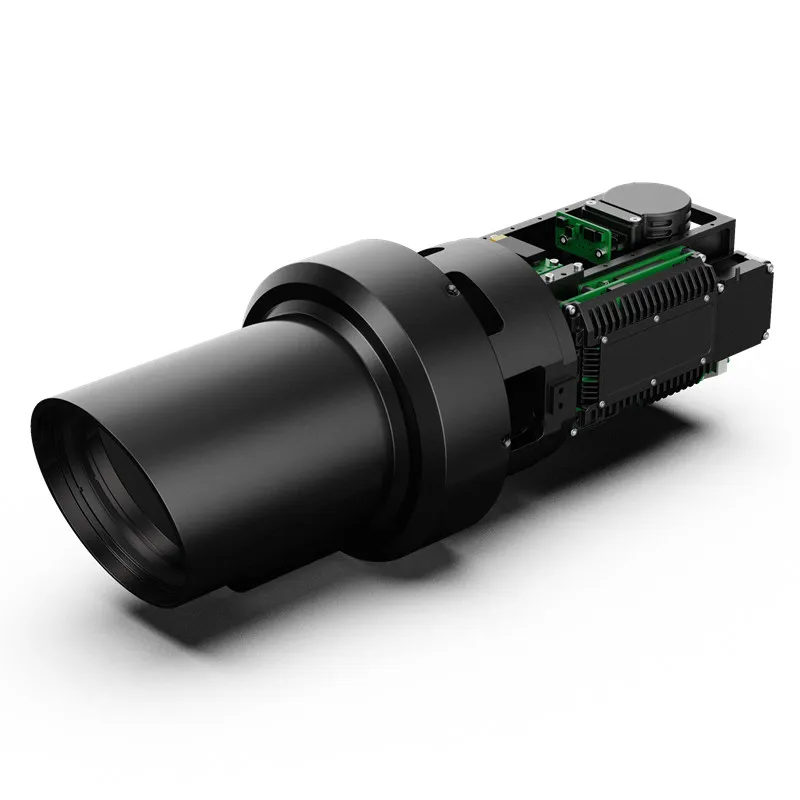

The F150mm MWIR Cooled Module Camera consists of a 25mm–150mm continuous zoom lens and a 1280×1024 @ 7.5μm high-sensitivity, small-pixel Stirling-cooled MWIR imaging component. It features embedded image processing algorithms-including adaptive non-uniformity correction (NUC), 3D image filtering, adaptive high-dynamic-range (HDR) imaging, and image enhancement-to effectively optimize imaging quality.
Technical Specification
|
Category |
Parameter |
Technical Value |
|
Detector |
Resolution |
1280 x 1024 |
|
Pixel Size |
7.5 um |
|
|
Spectral Range |
3.4um~ 5.0um |
|
|
Cooling Method |
Stirling Cooled (≤ 8.5 min startup) |
|
|
Optics |
Focal Length |
25mm to 150mm (6X Continuous Zoom) |
|
Aperture |
F2.0 |
|
|
Field of View (FOV) |
21.74 ° x 17.47 ° to 3.67° x 2.93° |
|
|
Performance |
Thermal Sensitivity (NETD) |
≤ 30mK @ 25℃ |
|
Optical Axis Stability |
≤ 3 Pixels |
|
|
Frame Rate |
30 Hz (CameraLink) / 25 Hz (SDI) |
|
|
Interfaces |
Video Output |
SDI (1080P), CameraLink (Base Mode) |
|
Communication |
RS422 |
|
|
Physical |
Dimensions |
≤ 406mm x 150mm x 150mm |
|
Weight |
≤ 4 kg |
|
|
Power Supply |
DC 28V +/- 4V |
Key Features & Advantages
- Motorized Precision: Supports electric zoom, motorized focus, and rapid one-click focusing for accurate target acquisition.
- Display Versatility: Supports horizontal, vertical, and diagonal mirroring as well as manual/automatic brightness and contrast adjustment.
- Hardware Reliability: Built-in under-voltage protection and support for system diagnostics and serial port program upgrades.
- Advanced Control: Features switchable internal and external synchronization to match complex laboratory or field setups.
- Professional Output: High-definition SDI and high-bandwidth CameraLink outputs for versatile professional connectivity.
Application
- Aerial Reconnaissance: Ideal for integration into UAV gimbals and aircraft pods for wide-area surveillance and target tracking.
- Critical Area Defense: High-level security for border protection, coastal monitoring, and military bases.
- Industrial Safety: Long-range monitoring for high-value assets and predictive maintenance in harsh environments.
- Forest Fire Prevention: Early detection of heat signatures and hotspots over large geographic areas.
- Advanced Research: Precision thermal profiling and infrared radiation characteristic measurement.
Product Series & Availability
We offer a market-leading portfolio of Mid-Wave Infrared (MWIR) solutions, ranging from high-definition continuous zoom systems to cooled engine modules and precision optics.
1. Continuous Zoom MWIR Cameras
Our integrated cooled camera systems provide superior thermal sensitivity and long-range performance.
640 Series (640×512):18–275mm | 40–200mm | 60–360mm | 60–600mm | 100–400mm | 23.2–640mm | 50–900mm| 88–1100mm
1280 Series (1280×1024):25–150mm | 22–720mm | 50–900mm
2. MWIR Camera Modules (Cores)
Resolution Options: Available in 640 × 512 and 1280 × 1024,1280*720 focal plane arrays.
3. Optical Components
MWIR Continuous Zoom Lenses: Available as standalone components for specialized integration.
