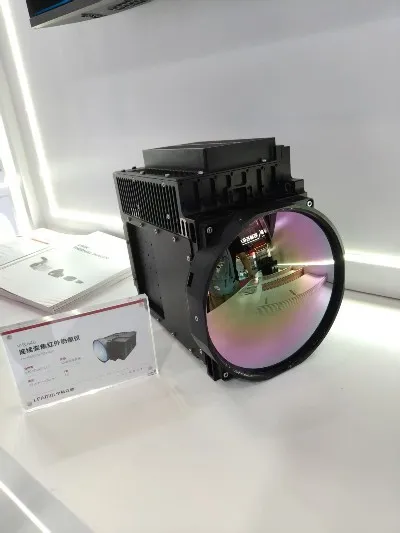

Cooled Infrared Imager

The Cooled Infrared Imager is a high-performance HD system designed for elite long-range reconnaissance and extreme-detail surveillance.
● Maintains a boresight accuracy of ≤ 2 pixels throughout the entire zoom range.
● Utilizes a 1280 x 1024 detector (NETD ≤ 25mK) for twice the resolution of standard 640x512 models.
● Features a powerful 22mm to 720mm 33x lens for seamless transition from wide situational awareness to ultra-detailed long-range identification.

Send Inquiry

The F720 Cooled Infrared Imager features a high-performance 22mm–720mm high-ratio continuous zoom lens and a high-sensitivity 1280×1024 @ 12μm Stirling-cooled imaging core. The system integrates advanced image processing algorithms-including adaptive non-uniformity correction (NUC), 3D noise filtering, adaptive high-dynamic-range (HDR) imaging, and image enhancement-to significantly optimize image quality.

Technical Specification

Category	Parameter	Technical Value
Detector	Resolution	1280 x 1024
	Pixel Size	12 um
	Spectral Range	3.7um to 4.8um
	Cooling Method	Stirling Cooled
Optics	Focal Length	22mm to 720mm (33X Continuous Zoom)
	F-Number	4.0
	Field of View (FOV)	38.49 ° x 31.21 ° to 1.22° x 0.98°
Performance	Thermal Sensitivity (NETD)	≤25mK @ 25℃
	Optical Axis Stability	≤ 2 Pixels
	Output Frame Rate	30 Hz (CameraLink) / 25 Hz (SDI)
Interfaces	Video Output	SDI (1080P), CameraLink (Base Mode)
Interfaces	Communication	RS422

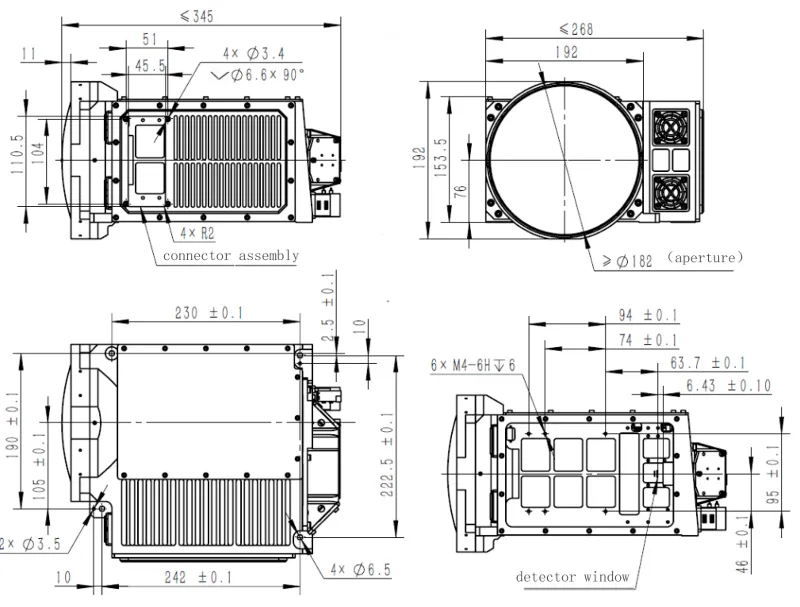

Physical	Dimensions	≤ 345mm x 268mm x 192mm
	Weight	≤ 12 kg
	Power Supply	DC 28V +/- 4V

Cooled Infrared Imager 0bd56015daa9ed22d87eeb74750a541b

Key Features & Advantages

Motorized Precision: Features electric zoom, motorized focus, and a rapid one-click focus function for fast-moving targets.
Adaptive Image Processing: Built-in 3D noise filtering and image enhancement for clear identification in complex backgrounds.
Display Versatility: Supports horizontal, vertical, and diagonal mirroring as well as manual/automatic integration time control.
Hardware Reliability: Built-in hardware protection and support for system diagnostics and program upgrades via serial port.
Multi-Interface Output: High-bandwidth SDI and CameraLink outputs for professional-grade connectivity.

Application

Aerial Reconnaissance: High-definition thermal imaging for airborne pods and UAV platforms.
Micro-UAV Detection: Long-range tracking and identification of small unmanned aerial systems.
Border & Coastal Defense: 24/7 high-precision surveillance for borders and coastal areas.
Critical Infrastructure Security: Protecting airports, power plants, and government facilities.
Forest Fire Prevention: Early detection of heat signatures and hotspots through atmospheric smoke.

Product Series & Availability

We offer a market-leading portfolio of Mid-Wave Infrared (MWIR) solutions, ranging from high-definition continuous zoom systems to cooled engine modules and precision optics.

1. Continuous Zoom MWIR Cameras

Our integrated cooled camera systems provide superior thermal sensitivity and long-range performance.

640 Series (640×512):18–275mm | 40–200mm | 60–360mm | 60–600mm | 100–400mm | 23.2–640mm | 50–900mm| 88–1100mm

1280 Series (1280×1024):25–150mm | 22–720mm | 50–900mm

2. MWIR Camera Modules (Cores)

Resolution Options: Available in 640 × 512 and 1280 × 1024,1280*720 focal plane arrays.

3. Optical Components

MWIR Continuous Zoom Lenses: Available as standalone components for specialized integration.
