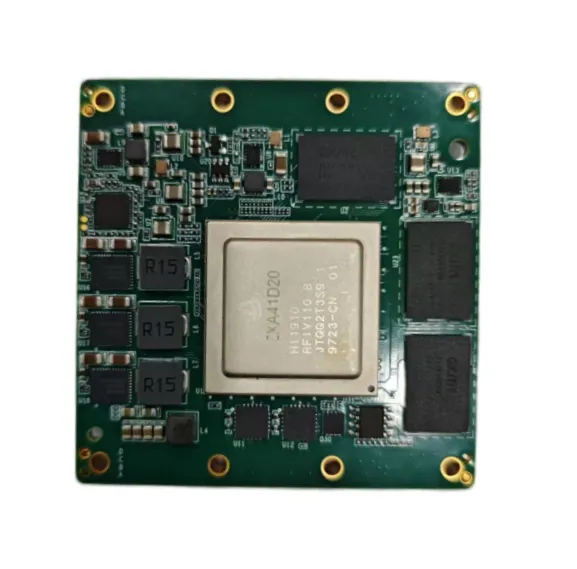

The 20 TOPS Edge Computing Module acts as a powerful edge intelligence core. Powered by the ZXA41D20 processor, it integrates 12GB ECC LPDDR4X and rich multimedia & communication interfaces into a compact 63.0×63.9×9.65 mm design.
Supporting MindSpore, PyTorch, TensorFlow and PaddlePaddle, it enables fast AI deployment. For high-reliability real-time applications, ZaxOS 1.0 is recommended, with sub-5μs scheduling latency and boot time under 5 seconds.
Technical Specification
|
Category |
Parameter |
Technical Value |
|
Processor |
CPU |
4× TAISHAN V200M @ 1.6GHz |
|
NPU (AI Core) |
1× DaVinci V300 (20 TOPS INT8 / 10 TFLOPS FP16) |
|
|
GPU |
ARM Mali G52 |
|
|
Memory/Storage |
RAM |
12GB LPDDR4X (4266Mbps, ECC Supported) |
|
Internal Storage |
64MB SPI Flash (Supports external EMMC 5.1 HS400) |
|
|
Video Decoding |
H.264 / H.265 |
40-ch 1080P@30fps or 4-ch 4K@75fps |
|
Video Encoding |
H.264 / H.265 |
20-ch 1080P@30fps or 3-ch 4K@50fps |
|
High-Speed I/O |
SerDes (8 Lanes) |
PCIe Gen3, SATA 3.0, USB 3.0, SGMII |
|
Networking |
Ethernet |
2× RGMII (Gigabit Ethernet) |
|
Multimedia |
Interfaces |
1x HDMI, 8-Lane MIPI-CSI, 4-Lane MIPI-DSI, 1x I2S |
|
Physical |
Dimensions / Weight |
63.0 × 63.9 ×9.65 mm / ≤ 55g |

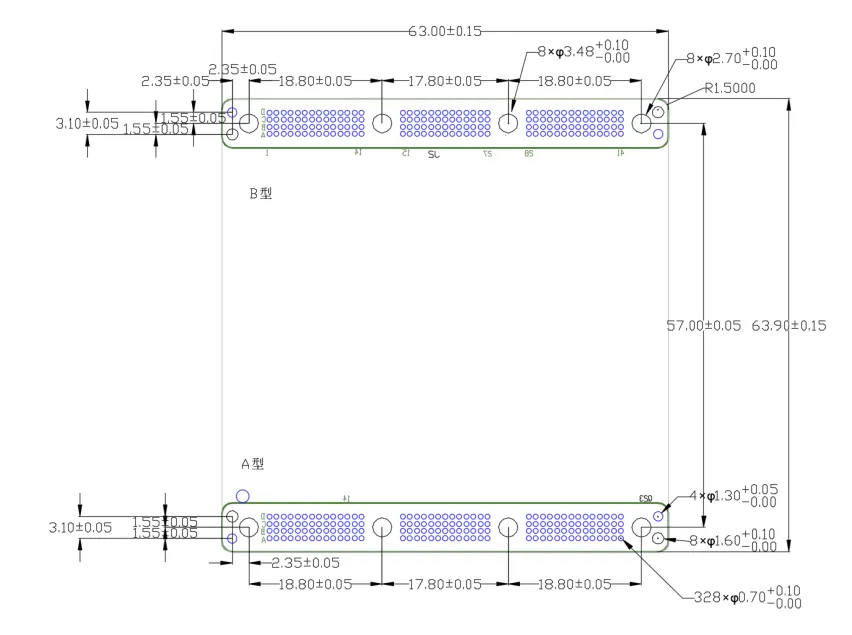

Mechanical Drawing
Application Scenarios
Unmanned Systems
Core intelligence for high-end UAVs, UGVs, and autonomous robotic platforms.
Specialized Equipment
High-reliability computing for mission-critical hardware and tactical sensing devices.
Industrial Control
Smart manufacturing, high-speed machine vision, and real-time industrial AI monitoring.
Advanced Surveillance
Real-time multi-channel video analytics and sensor fusion in distributed networks.
Key Functions & Advantages
- Versatile OS Ecosystem: Supports ZaxOS 1.0, openEuler, and Ubuntu, offering flexibility for different industry requirements.
- Professional Image Pre-processing: Integrated hardware support for Auto Exposure (AE), White Balance (AWB), scaling, denoising, and electronic image stabilization.

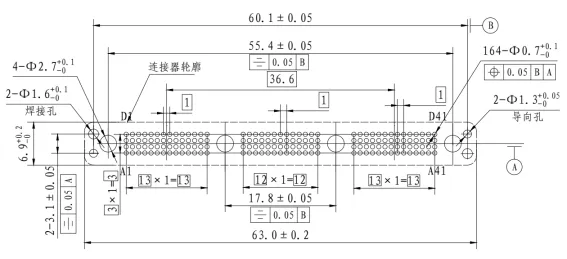

- High-Density Connectivity: Utilizes dual 164-pin high-density connectors for secure, low-profile board-to-board integration.
- Rugged Design: Sealed and engineered to meet GJB 10164-2021 quality control requirements (M1/M2 grades).
- Intelligence-Control Fusion: Optimized for ZaxOS 1.0 to achieve sub-5μs scheduling latency, perfectly balancing AI reasoning with real-time hardware control.
Product Series & Availability
1. Based on Huawei Ascend 310 and RK3588 series processors, the product line provides computing power ranging from 8TOPS to 176TOPS@INT8. With flexible size and power consumption, it supports intelligent control for unmanned equipment, industrial control and other fields.
2. Its core advantages include 100% domestic and independent‑controllable components, as well as high compatibility. It supports multiple operating systems, mainstream deep‑learning frameworks, abundant interfaces and dual working modes for diversified deployment.
3. Fully certified, the product series meets standard production and storage requirements in operating temperature, ensuring stable performance in harsh environments.
