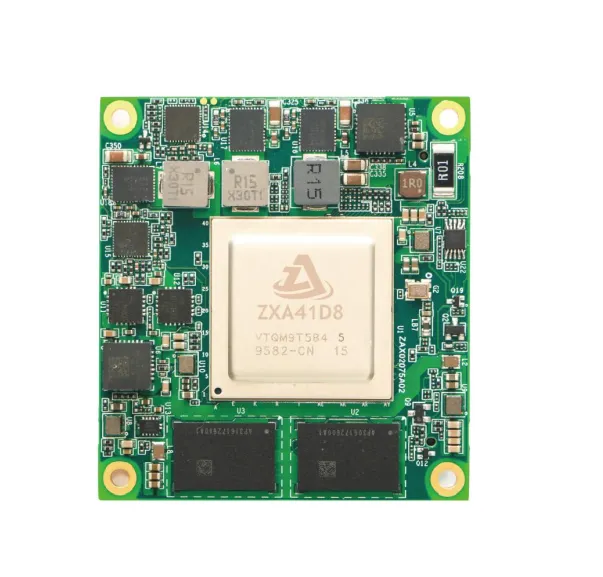

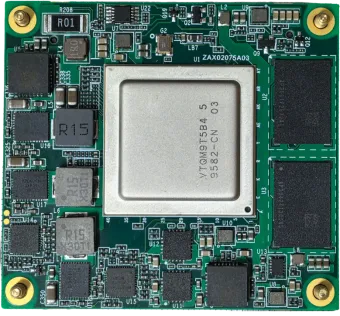

The 8 TOPS Edge AI Compact Embedded Computing Hardware acts as the core brain for intelligent edge devices. Based on ZXA41D8, it features 8GB LPDDR4X + 64MB SPI flash within a compact 60×55mm size. It supports mainstream deep‑learning frameworks and rapid deployment of YOLO, ResNet, MobileNet, etc. Optimized for ZaxOS 1.0, it delivers ultra‑low scheduling latency and fast boot for mission‑critical stability.
Technical Specification
|
Category |
Parameter |
Technical Value |
|
Processor |
CPU |
4× TAISHAN V200M @ 1.6GHz |
|
NPU (AI Core) |
1× DaVinci V300 (8 TOPS INT8 / 4 TFLOPS FP16) |
|
|
GPU |
ARM Mali G52 |
|
|
Memory/Storage |
RAM |
8GB LPDDR4X (3200Mbps, ECC Supported) |
|
Internal Storage |
64MB SPI Flash (Supports external EMMC 5.1) |
|
|
Video Decoding |
H.264 / H.265 |
20-ch 1080P@30fps or 2-ch 4K@75fps |
|
Video Encoding |
H.264 / H.265 |
12-ch 1080P@30fps or 2-ch 4K@50fps |
|
High-Speed I/O |
SerDes (8 Lanes) |
PCIe Gen3, SATA 3.0, USB 3.0, SGMII, GE |
|
Multimedia |
Interfaces |
1x HDMI, 8-Lane MIPI-CSI, 4-Lane MIPI-DSI, 1x I2S |
|
Electrical |
Power Supply |
DC 12V (±5%) |
|
Power Consumption |
Typical: 15W / Max: 18W |
|
|
Physical |
Dimensions / Weight |
60 × 55 × 9.7 mm / ≤ 50g |
|
Category |
Parameter |
Technical Value |
|
Processor |
CPU |
4× TAISHAN V200M @ 1.6GHz |
|
NPU (AI Core) |
1× DaVinci V300 (8 TOPS INT8 / 4 TFLOPS FP16) |
|
|
GPU |
ARM Mali G52 |

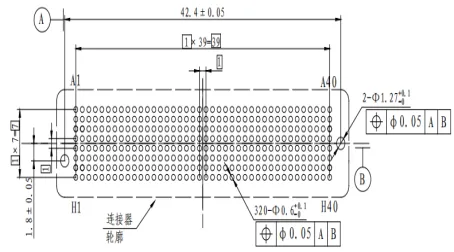

Mechanical Drawing
Application Scenarios
Unmanned Systems
Core intelligence for UAVs, UGVs, and autonomous underwater vehicles.
Specialized Equipment
High-reliability computing for mission-critical hardware and tactical devices.
Industrial Control
Smart manufacturing, machine vision, and real-time industrial AI monitoring.
Edge Computing
Real-time video analytics and sensor fusion in distributed security networks.
Key Functions & Advantages
- Comprehensive OS Support: Compatible with ZaxOS 1.0, openEuler, and Ubuntu, providing a flexible software ecosystem for developers.
- Ultra-High Integration: Combines 320-pin high-density connectivity with a small footprint to minimize carrier board complexity.
- Advanced ISP Capabilities: Integrated support for auto-exposure, white balance, denoising, and electronic image stabilization.
- Fault Isolation & Redundancy: ZaxOS 1.0 integration provides robust fault management and redundancy mechanisms for high-safety applications.
- Flexible SerDes Configuration: The 8-lane SerDes macro can be dynamically configured to meet specific project needs for storage (SATA) or high-speed communication (PCIe/GE).
Product Series & Availability
1. Based on Huawei Ascend 310 and RK3588 series processors, the product line provides computing power ranging from 8TOPS to 176TOPS@INT8. With flexible size and power consumption, it supports intelligent control for unmanned equipment, industrial control and other fields.
2. Its core advantages include 100% domestic and independent‑controllable components, as well as high compatibility. It supports multiple operating systems, mainstream deep‑learning frameworks, abundant interfaces and dual working modes for diversified deployment.
3. Fully certified, the product series meets standard production and storage requirements in operating temperature, ensuring stable performance in harsh environments.
