The Ascend Industrial Embedded Vision Processing Unit is built on Huawei Ascend 310B, featuring CPU+NPU+GPU heterogeneous architecture and 20TOPS INT8 computing power for complex AI vision tasks.
It supports 5‑channel multi‑protocol video input, high‑efficiency codec and abundant interfaces.
100% domestically‑made with -40°C~+60°C wide‑temperature design, it runs openEuler with CANN and pre‑provided AI samples, perfect for embedded electro‑optical systems.
Technical Specification
|
Category |
Parameter |
Technical Value |
|
Core Processor |
Model |
Huawei Ascend 310B (ZXA41D20) |
|
CPU/NPU/GPU |
4×TAISHAN V200M(1.6GHz);20TOPS INT8;ARM Mali G52 |
|
|
Memory |
RAM/Storage |
12GB LPDDR4X(96bit);64MB SPI FLASH |
|
Video Codec |
Decode/Encode |
H.264/H.265:40×1080P/4×4K / 20×1080P/3×4K |
|
Video Input |
Digital |
2×SDI(1080P60)+1×CameraLink+2×MIPI(4lane) |
|
Interfaces |
Ethernet/Serial/USB |
2×Gigabit RJ45;10×RS422+1×RS232;1×USB3.0 Type-C |
|
Power Supply |
Voltage/Current |
DC12V±1V;Max2.5A,Typ1.5A |
|
Mechanical |
Size |
135×100×≤25mm (excl. connectors) |
|
Environment |
Operating Temp |
-40°C ~ +60°C |
|
System & Dev |
OS/Architecture |
openEuler;CANN |
|
Support/Examples |
MindSpore/PyTorch/TensorFlow;YOLO detection,target tracking |
Mechanical Drawing

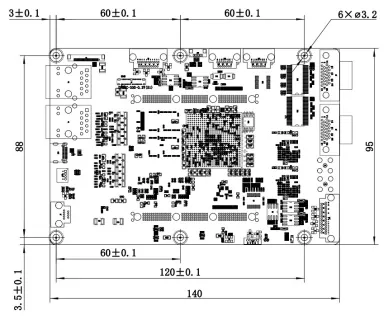

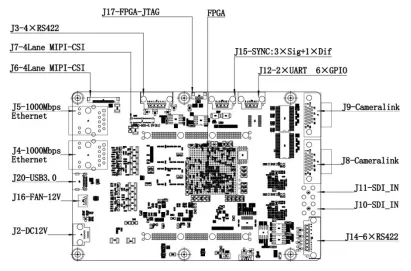

Figure 1 Dimension Drawing (Unit: mm) Figure 2 Interface Drawing
Application Scenarios
- Missile seeker AI recognition & image processing
- Airborne/ship-borne photoelectric pod vision systems
- Ground/vehicle-mounted photoelectric turret intelligent processing
- Industrial high-speed machine vision detection
- UAV/UGV high-performance visual perception
- Aerospace/defense professional intelligent image processing
- High-reliability security monitoring AI analysis
Key Functions & Advantages
- 20TOPS high computing power for complex end-side AI tasks
- Multi-protocol video input, compatible with various professional sensors
- 100% domestic components, independent supply chain
- Ultra-strong multi-channel 4K/1080P real-time codec
- Abundant serial ports, meet multi-device communication/control
- Wide temperature adaptability, stable in extreme environments
- Standardized platform, support mainstream AI frameworks
- High integration, small size, low cost for mass deployment
Product Series & Availability
1. Based on Huawei Ascend 310 and RK3588 series processors, the product line provides computing power ranging from 8TOPS to 176TOPS@INT8. With flexible size and power consumption, it supports intelligent control for unmanned equipment, industrial control and other fields.
2. Its core advantages include 100% domestic and independent‑controllable components, as well as high compatibility. It supports multiple operating systems, mainstream deep‑learning frameworks, abundant interfaces and dual working modes for diversified deployment.
3. Fully certified, the product series meets standard production and storage requirements in operating temperature, ensuring stable performance in harsh environments.
