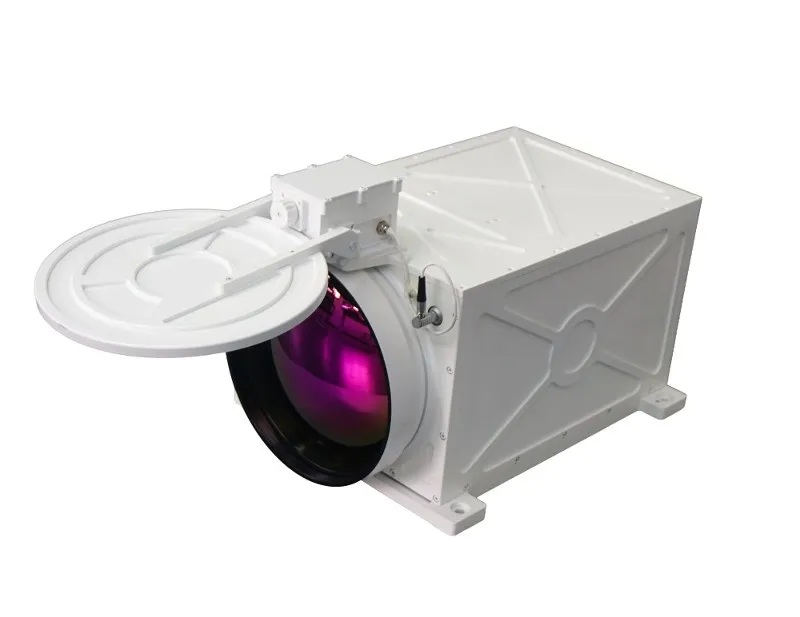

The F1100mm Long Range Thermal Surveillance Camera adopts a high-sensitivity MCT focal plane detector with Stirling cooling. Its spectral response range is 3.7μm~4.8μm, and the pixel size is 15μm. The thermal imager features a modular design, offering a compact volume and high integration. It is equipped with intelligent image processing algorithms such as image noise filtering, digital detail enhancement, and automatic dimming. The imager boasts characteristics like high sensitivity, easy integration, rich interfaces, high reliability, and strong expandability.
Technical Specification
|
Category |
Parameter |
Technical Value |
|
Detector |
Resolution |
640 x 512 |
|
Pixel Pitch |
15 um |
|
|
Spectral Range |
3.7um to 4.8um |
|
|
Material |
MCT (HgCdTe) |
|
|
Cooling Method |
Stirling Cooled |
|
|
Optics |
Focal Length |
88mm to 1100mm (+/- 5%) |
|
Aperture |
F5.5 |
|
|
Field of View (FOV) |
6.24°×5.00°~ 0.50°×0.40° |
|
|
Performance |
Thermal Sensitivity (NETD) |
≤ 25mK @ 25℃ |
|
Digital Zoom |
x2 / x4 |
|
|
Output Frame Rate |
SDI: 50 Hz / PAL: 25 Hz |
|
|
Interfaces |
Video Output |
SDI / PAL |
|
Communication |
RS422 |
|
|
Electrical |
Power Supply |
DC 24V +/- 1V, 4A |
|
Power Consumption |
≤ 50W @ 25C |
|
|
Physical |
Dimensions |

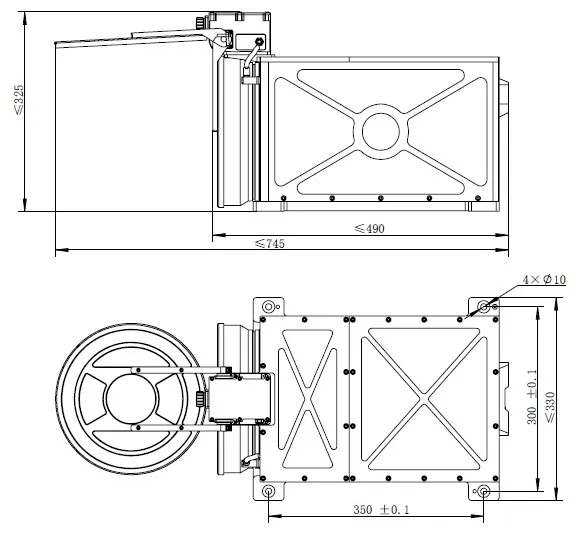

≤ 745mm (L) x 330mm (W) x 325mm (H) |
|
Weight |
≤ 25 kg |
|
|
IP Rating |
IP66 |
Key Features & Advantages
- Motorized Precision: Supports electric zoom, electric focusing, and a convenient one-key focusing function.
- Adaptive Image Algorithms: Includes image noise filtering and automatic brightness/contrast adjustment for superior target contrast.
- Display Versatility: Supports horizontal, vertical, and diagonal mirroring; black-hot/white-hot polarity switching; and crosshair overlay.
- Hardware Reliability: Integrated under-voltage and reverse connection protection for enhanced field longevity.
- Professional Control: Equipped with a standard RS422 communication interface with customizable protocols available upon request.
Application
- Air Defense Surveillance: Detection and tracking of high-altitude targets and unmanned aerial systems (UAV/UAS).
- Boundary & Border Protection: 24/7 high-precision monitoring for borders, airports, and vital government facilities.
- Fire Early Warning: Detecting early heat signatures and hotspots in forests or industrial parks.
- Maritime & Coastal Security: Penetrating atmospheric haze and spray for long-distance rescue and observation.
- Scientific Research: Infrared identification, night vision equipment, and characteristic measurement of thermal targets.
Product Series & Availability
We offer a market-leading portfolio of Mid-Wave Infrared (MWIR) solutions, ranging from high-definition continuous zoom systems to cooled engine modules and precision optics.
1. Continuous Zoom MWIR Cameras
Our integrated cooled camera systems provide superior thermal sensitivity and long-range performance.
640 Series (640×512):18–275mm | 40–200mm | 60–360mm | 60–600mm | 100–400mm | 23.2–640mm | 50–900mm| 88–1100mm
1280 Series (1280×1024):25–150mm | 22–720mm | 50–900mm
2. MWIR Camera Modules (Cores)
Resolution Options: Available in 640 × 512 and 1280 × 1024,1280*720 focal plane arrays.
3. Optical Components
MWIR Continuous Zoom Lenses: Available as standalone components for specialized integration.
