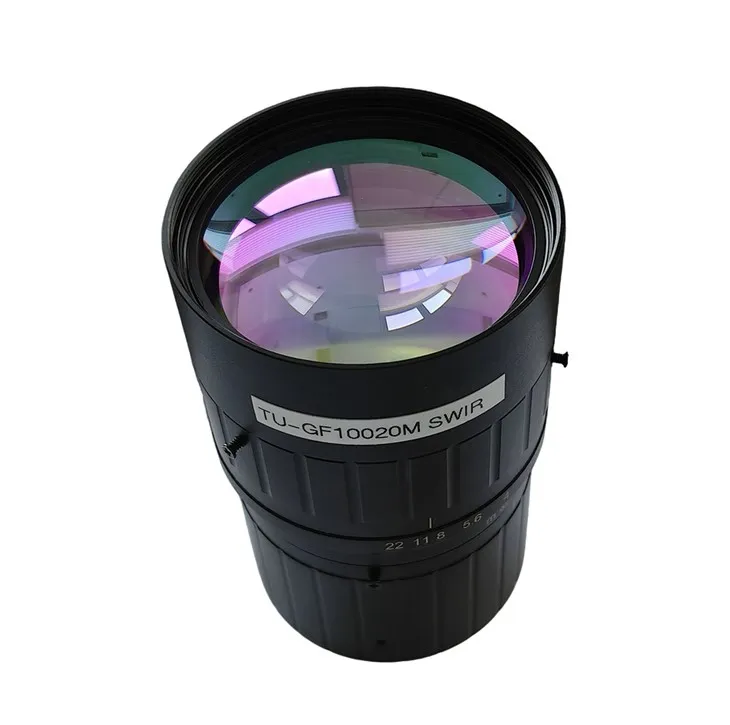

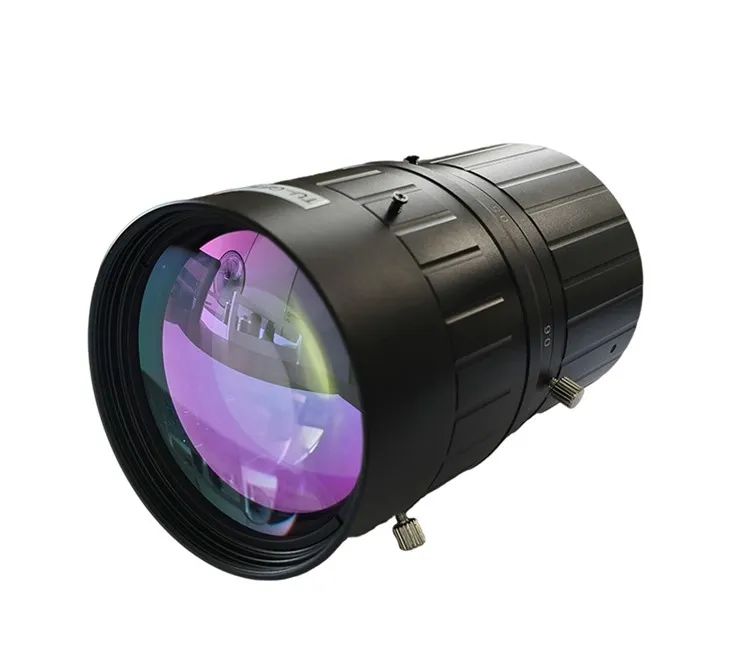

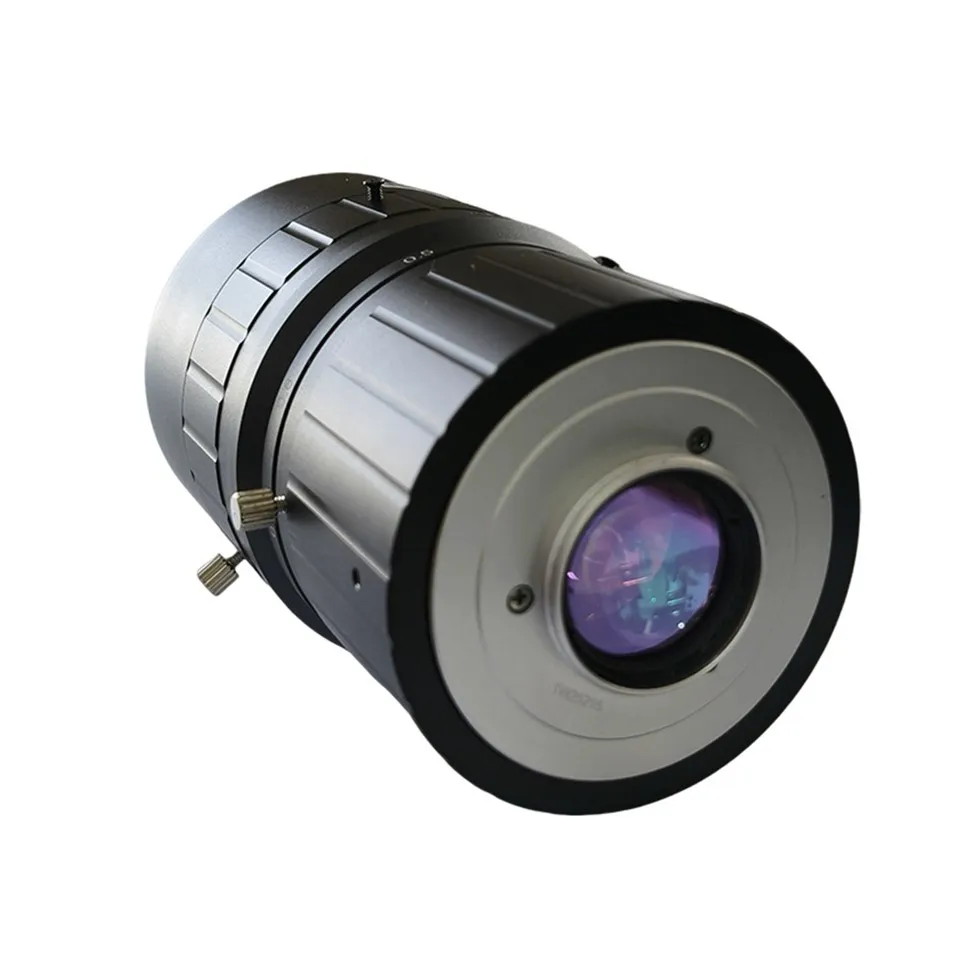

The fixed SWIR lenses deliver high‑resolution infrared imaging. Unlike heat‑detecting thermal cameras, they capture reflected light to see through fog, haze, smoke, plastics and silicon.
With fixed‑focus non‑zoom design, they ensure stable, repeatable performance and long‑term durability. Manual locking screws keep settings steady for surveillance and industrial automation.
Perfect for agricultural moisture testing, semiconductor inspection, night‑time border monitoring and other AI‑driven vision applications.
Technical Specification
Part of the parameters is provided for reference only. For further information and full specifications, please consult our sales representatives.
|
(EFL) |
(F#) |
(FOV) |
WavelengthRange |
FocusingMethod |
(BFD) |
(Mount) |
(FPA) |
|
23mm |
2 |
30°(D) |
900-2300nm |
Manual Focus |
17.526mm |
C-Mount |
320×256-30um |
|
25mm |
2.5 |
26°(D) |
900-2500nm |
Manual Focus |
17.526mm |
C-Mount |
320×256-30um |
|
35mm |
2 |
20°(D) |
900-2500nm |
Manual Focus |
17.526mm |
C-Mount |
320×256-30um |
|
35mm |
2 |
10°(D) |
900-2500nm |
Manual Focus |
17.526mm |
C-Mount |
320×256-30um |
|
35mm |
2.4 |
20°(D) |
900-2300nm |
Manual Focus |
17.526mm |
C-Mount |
320×256-30um |
|
35mm |
2.4 |
20°(D) |
900-2500nm |
Manual Focus |
17.526mm |
C-Mount |
320×256-30um |
|
50mm |
2 |
14°(D) |
900-2300nm |
Manual Focus |
13.526mm |
C-Mount |
320×256-30um |
|
50mm |
2 |
14°(D) |
900-2500nm |
Manual Focus |
17.526mm |
C-Mount |
320×256-30um |
|
15mm |
2 |
35.5°×28.7° |
900-2500nm |
Fixed Focus |
12.53mm |
C-Mount |
640×512-15um |
|
25mm |
2 |
21.7°×17.6° |
900-2500nm |
Fixed/Manual Focus |
12.53mm |
C-Mount |
640×512-15um |
|
100mm |
2 |
15.6°×12.5° |
900-2500nm |
Fixed Focus |
12.53mm |
C-Mount |
640×512-15um |
|
200mm |
2 |
11°×8.8° |
900-2500nm |
Fixed Focus |
12.53mm |
C-Mount |
640×512-15um |
|
75mm |
2 |
7.3°×5.8° |
900-2500nm |
Fixed Focus |
12.53mm |
C-Mount |
640×512-15um |
Application Scenarios
- Semiconductor Inspection: Non-destructive imaging through silicon wafers for crack detection and alignment.
- Material Sorting: Identifying plastics, textiles, and minerals by their unique spectral signatures in the SWIR band.
- Defense & Security: Long-range surveillance through fog, smog, and dust; laser spot tracking (1064nm/1550nm).
- Agriculture: Monitoring crop hydration levels and fruit bruising detection through skin layers.
- Scientific Research: Astronomical observation and biomedical fluorescence imaging.
Key Functions & Advantages
- Manual Precision: Tactile manual focus and iris rings with industrial-grade locking screws to prevent shifting under vibration.
- High Contrast Imaging: Specialized internal baffles and coatings significantly reduce stray light and ghosting.
- Superior SWIR Transmission: Specifically designed glass elements (not standard optical glass) provide higher throughput for short-wave infrared photons.
- Modular Flexibility: Available in multiple focal lengths to suit various Fields of View (FOV) requirements, from wide-angle surveillance to narrow-field inspection.
- Easy Integration: Lightweight and compact form factor allows for integration into hand-held devices or cramped industrial enclosures.
Product Series & Availability
● Precision Machining Capability
Capable of machining shaft parts, rotary table parts and complex structural parts. Complete and reliable process assurance measures, as well as sophisticated processing and inspection methods are available for precision mechanical manufacturing.
● Precision Optical Manufacturing Capability
Capable of manufacturing high-precision lenses for visible light and infrared applications, high-precision prisms and high-precision aspherical components. The company can mass-produce various high-precision optical components including spherical, planar, prismatic, cylindrical and aspherical elements covering the visible to infrared wavebands.
● Precision Opto-Mechanical Assembly Capability
Capable of high-precision shafting assembly and precision optical lens system assembly for visible light and infrared applications. Possesses capabilities in system development, optical testing and integrated alignment.
