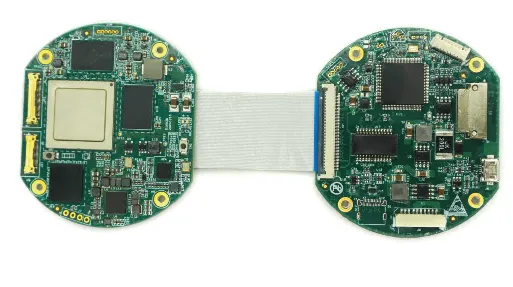

The RK3588 MIPI CSI Camera Development Board with 8-core CPU and 6TOPS NPU for efficient AI vision tasks. Supports 3-channel video inputs (MIPI + BT.1120) with unified V4L2 interface and professional sensor compatibility. Equipped with Gigabit Ethernet, multiple serial ports, and motor/fan control. Compact Φ70×17.2mm size, wide temperature range (-40°C~+60°C), Linux system with RKNN API and algorithm examples, simplifying development and accelerating deployment.
Technical Specification
|
Category |
Parameter |
Technical Value |
|
Core Processor |
Model |
Rockchip RK3588 (8nm) |
|
CPU |
8-core 64-bit (4Cortex-A76+4Cortex-A55) |
|
|
NPU |
6TOPS, tri-core; int4/int8/FP16/BF16 supported |
|
|
Memory & Storage |
RAM |
8GB LPDDR4X |
|
Built-in |
64GB eMMC |
|
|
Extended |
SD slot, max 128GB |
|
|
Multimedia |
Decoding |
H.265/H.264/AV1, up to 8K60FPS |
|
Encoding |
H.264/H.265, up to 8K30FPS |
|
|
Video Input |
Digital |
2×MIPI + 1×BT.1120; V4L2 standard interface |
|
Interfaces |
Ethernet |
1×Gigabit adaptive (RTSP support) |
|
Serial |
4×UART(TTL3.3V), 2×RS422 |
|
|
USB/Control |
1×USB2.1 Type-C; Motor/fan drive, SWD download |
|
|
High-speed |
PCIe3.0/PCIe2.0/SATA3.0 |
|
|
Power Supply |
Voltage |
DC12V |
|
Mechanical |
Size |
Φ70×17.2mm (excl. connectors) |
|
Environment |
Operating Temp |
-40°C ~ +60°C |
|
System & Dev |
OS |
Linux (Ubuntu) |
|
API/Examples |
RKNN Runtime; YOLOv5 detection, target tracking |
Mechanical Drawing
Application Scenarios
- Missile seeker image processing & AI recognition
- Airborne/ship-borne photoelectric pod vision systems
- Ground/vehicle-mounted photoelectric turret AI processing
- Industrial high-precision machine vision detection
- UAV/UGV visual perception modules
- Aerospace/defense professional image processing equipment
Key Functions & Advantages
- Triple digital video input, compatible with professional image sensors
- 6TOPS NPU, efficient for complex AI vision tasks
- Modular design, flexible interface expansion and dev
- Compact circular size, ideal for small-space embedded systems
- Integrated motor/fan drive, meets photoelectric equipment control needs
- Wide temperature adaptability, stable in extreme environments
- Standardized development interface, low secondary development cost
- 8K video performance, real-time encoding for fast transmission
Product Series & Availability
1. Based on Huawei Ascend 310 and RK3588 series processors, the product line provides computing power ranging from 8TOPS to 176TOPS@INT8. With flexible size and power consumption, it supports intelligent control for unmanned equipment, industrial control and other fields.
2. Its core advantages include 100% domestic and independent‑controllable components, as well as high compatibility. It supports multiple operating systems, mainstream deep‑learning frameworks, abundant interfaces and dual working modes for diversified deployment.
3. Fully certified, the product series meets standard production and storage requirements in operating temperature, ensuring stable performance in harsh environments.
