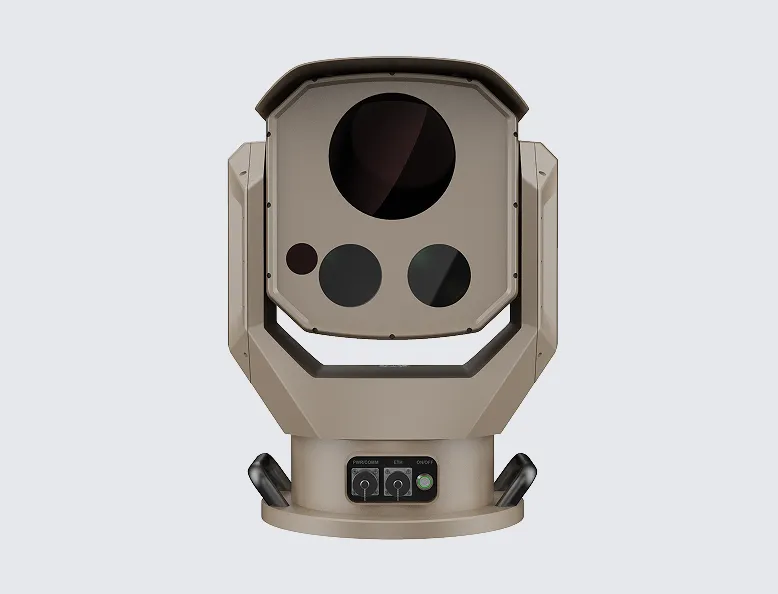

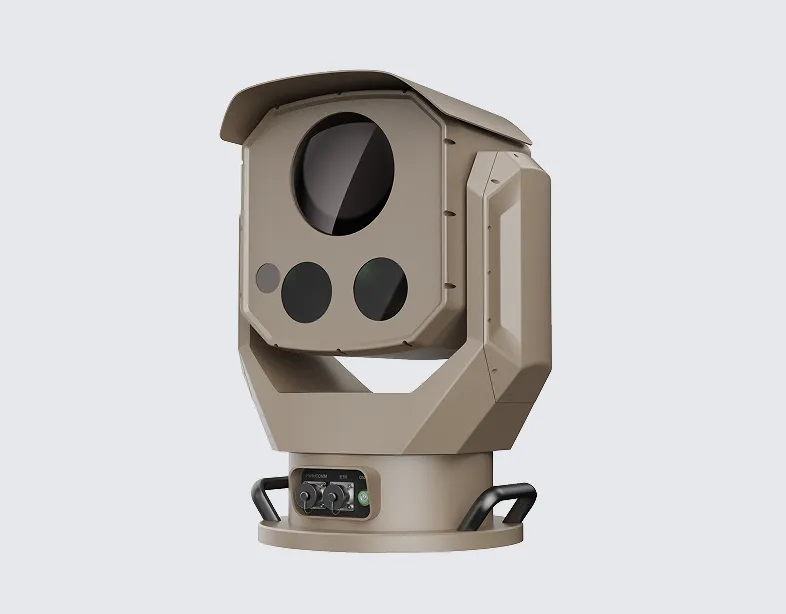

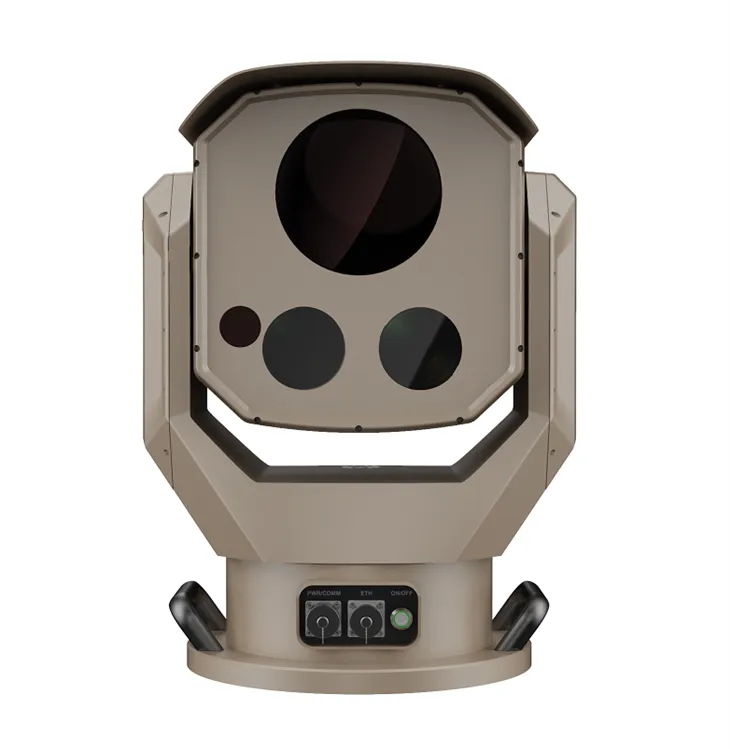

The Thermal Optical Tracking System enables real-time multi-target detection, identification and continuous tracking, with manual, click and automatic tracking modes,which adopts long-wave uncooled infrared and HD visible dual-band detection for 24/7 all-weather operation, stable in light fog and strong light.
Lightweight (≤35kg) and compact, it supports desktop, vehicle-mounted and portable deployment, fast relocation and multi-node networking for coordinated tracking.
AI optimized for low-slow-small targets delivers accurate UAV identification and low false alarms, with free algorithm upgrades.
Standard interfaces allow easy linkage with external control systems. Modular design enables quick payload replacement and rapid axis calibration.
Technical Specification
|
Category |
Parameter |
Technical Value (IR / Visible / LRF) |
| Overall |
Tracking Range (DJI Phantom 4) |
≥2.2 km / ≥3.0 km / - |
|
Recognition Range (DJI Phantom 4) |
≥1.0 km / ≥2.0 km / - |
|
|
Power Supply |
DC24V |
|
|
Power Consumption |
≤150 W |
|
|
Communication Interface |
Gigabit Ethernet Port (RJ45) |
|
|
Protocol |
UDP (control), RTSP (video H.264) |
|
|
Thermal Camera |
Detector |
640×512, long-wave uncooled (12μm pixel size) |
|
Waveband |
8–14 μm |
|
|
Focal Length |
30–150 mm |
|
|
Max Frame Rate |
50 fps |
|
|
NETD |
≤30 mK |
|
|
Visible Camera |
Resolution |
1920×1080 (CMOS sensor, 2.0μm pixel size) |
|
Waveband |
0.4–0.9 μm |
|
|
Optical Zoom |
54× |
|
|
Focal Length |
10–540 mm |
|
|
Defogging |
Optical / Electronic |
|
|
Min Illumination |
Color: 0.001 lux (F1.4); Monochrome: 0.0001 lux (F1.4) |
|
|
Laser Rangefinder (LRF) |
Wavelength |
1535±5 nm (eye-safe band) |
|
Ranging Range |
≥2 km (DJI Phantom 4) |
|
|
Accuracy |
≤±5 m |
|
|
Pan-Tilt |
Azimuth |
0–360° unlimited continuous rotation |
|
Pitch |
-20°~+70° |
|
|
Max Speed |
Azimuth: 0.01°–180°/s; Pitch: 0.01°–90°/s |
|
|
Angle Measurement Accuracy |
≤0.05° |
|
|
Physical |
Weight |
≤35 kg (host) |
|
Dimensions |
≤Φ400mm×525mm |
|
|
Protection |
IP65 |
|
|
Operating Temp. |
-20℃~+60℃ |
|
|
Storage Temp. |
-25℃~+65℃ |

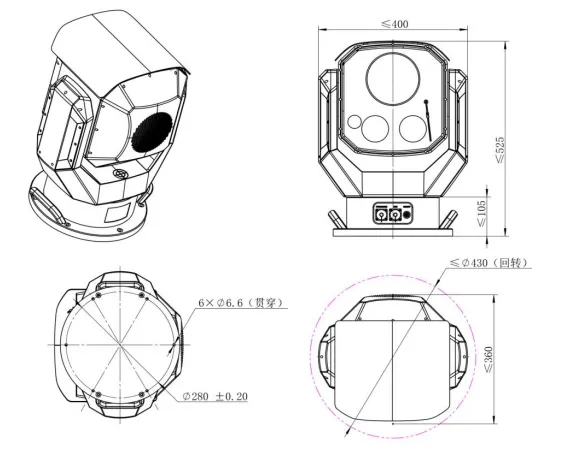

Mechanical Drawing
Application Scenarios
Ideal for 24/7 full-airspace surveillance, featuring networked operation and flexible deployment:
- Detection & Tracking: All-time and full-airspace multi-target detection and single-target tracking.
- Border & Coastal Defense: Border patrol and coastal defense management.
- Critical Infrastructure: Test sites, key area security, perimeter protection, oil fields and depots.
- Aviation Security: Comprehensive airport perimeter safety protection.
Key Functions & Advantages
- Universal adaptability: Can be used as an independent device or seamlessly connected to anti-UAV, security monitoring and airspace control systems.
- Multi-target real-time tracking: Fast response speed, high tracking accuracy, supporting simultaneous parallel multi-target detection and tracking.
- Dual-band composite detection: Infrared + visible light, enabling all-day operation with stable detection performance in harsh environments.
- Lightweight & miniaturized: Host weight ≤35kg, compact size, supporting table-mounted, vehicle-mounted and portable deployment for rapid relocation.
- AI-enhanced recognition: Optimized for "low, slow and small" targets, effectively distinguishing UAVs from interference, low false alarm rate, supporting free algorithm iteration.
- Standardized linkage: Supports mainstream video and data protocols, enabling quick connection with external disposal and control systems for data sharing and linkage response.
- Modular design: Flexible and rapid replacement of different loads, with fast optical axis and pitch axis balancing and commissioning.
- Networkable deployment: Supports multi-node networking to realize multi-point intersection tracking and measurement, expanding detection coverage.
- High-precision positioning: Equipped with laser rangefinder and high-precision servo turntable, outputting target position, angle and distance data in real time.
Product Series & Availability
We offer a variable products to meet diverse application requirements.
1.Full-Series Electro-Optical & Radar Integrated Systems
We provide a full range of anti-UAV integrated systems with different detection ranges, optical configurations and radar bands, perfectly adapted to border outposts, key area protection, coastal defense, airport security and other high-security scenarios.
2.Standard Core Component Supply
We supply standardized SWIR/MWIR/LWIR thermal imagers, continuous zoom lenses, visible camera modules and laser rangefinders, which can be used for independent integration, replacement, upgrade and secondary development.
3.Customized Design & Manufacturing
We provide professional customized services for optical parameters, mechanical structure, installation interface, software protocol and housing to meet customer-specific application requirements.
