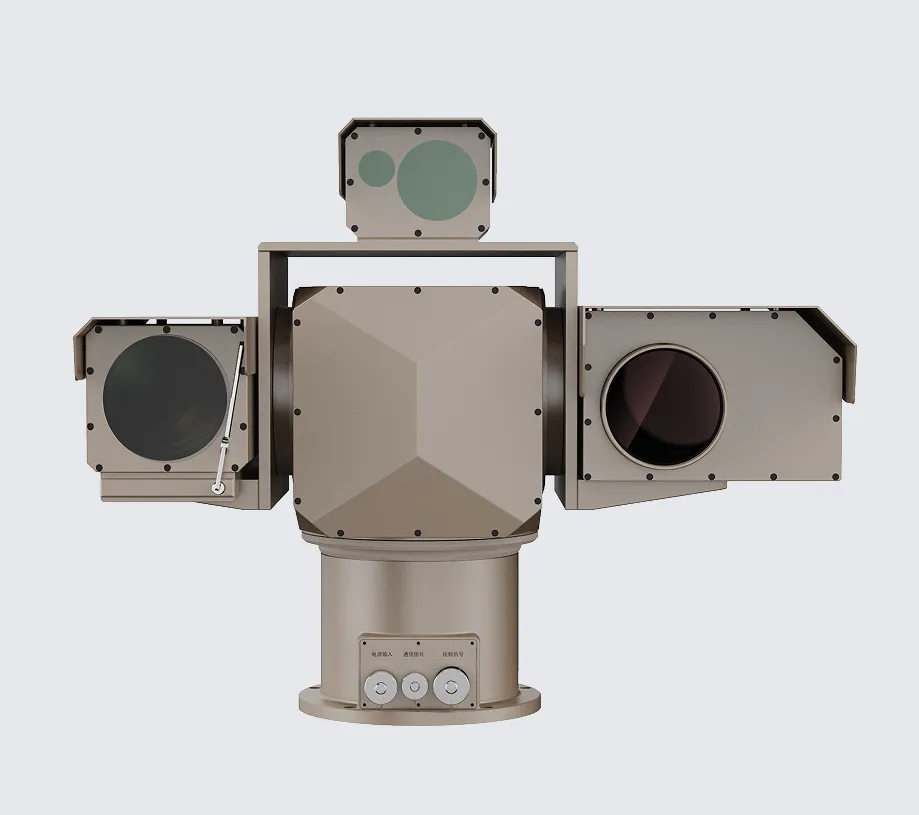

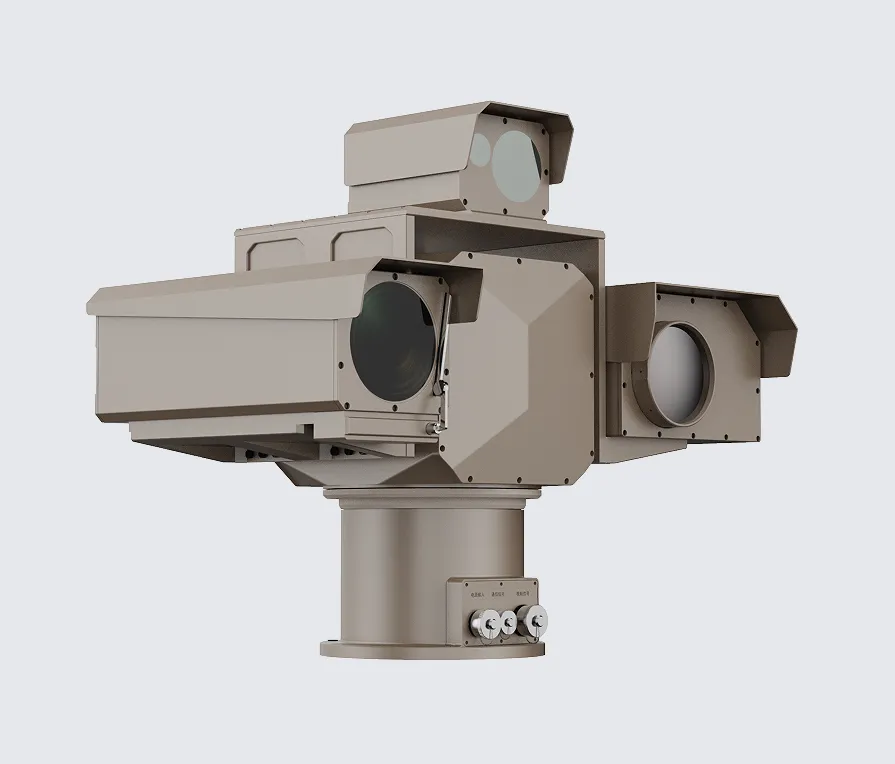

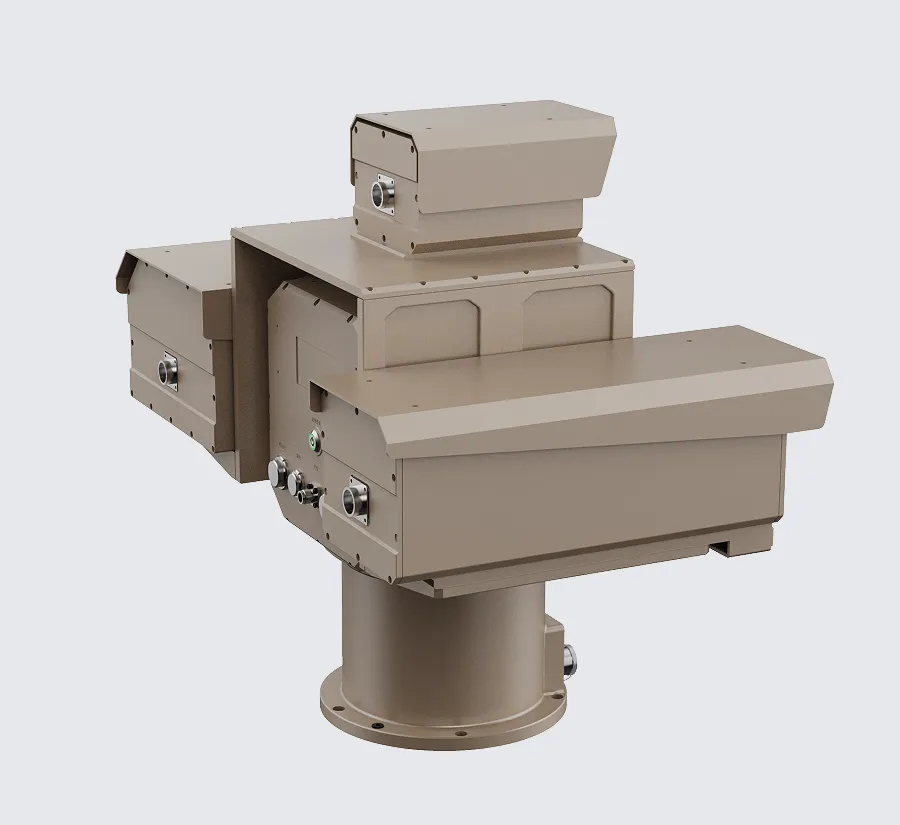

The Coastal Electro-Optical Tracking System adopts a fully passive detection architecture with no electromagnetic radiation, ensuring high concealment and immunity to interference. It fuses infrared and visible light data to achieve all-day, all-weather target detection, even in dark, foggy or strong light environments.It supports 360° panoramic scanning with adjustable speed, automatic/manual dual-mode tracking, and real-time 3D coordinate output via GPS. The system features AI intelligent recognition with low false alarms, and is compatible with fixed and vehicle-mounted deployment. Its rugged IP65 design ensures stable long-term operation in harsh outdoor environments.
Technical Specification
|
Category |
Parameter |
Technical Value |
|
System |
IR search range |
≥3 km (DJI Phantom 4) |
|
IR tracking range |
≥3.5 km |
|
|
Visible tracking range |
≥5 km |
|
|
Angle measurement accuracy |
≤0.05° |
|
|
Laser ranging accuracy |
≤±5 m |
|
|
Panoramic scanning range |
360°×1.29°～360°×9.75° |
|
|
Thermal Camera |
Detector |
640×512 medium-wave cooled |
|
Waveband |
3.7–4.8 μm |
|
|
Optical zoom |
7.56× |
|
|
Focal length |
45–340 mm |
|
|
Visible Camera |
Resolution |
1920×1080 |
|
Optical zoom |
37.5× |
|
|
Focal length |
20–750 mm |
|
|
Waveband |
0.4–1.1 μm |
|
|
Defogging |
Optical / Electronic |
|
|
Laser Rangefinder |
Wavelength |
1535±5 nm |
|
Ranging range |
≥3 km |
|
|
Pan-Tilt |
Azimuth |
0–360° continuous |
|
Pitch |
-10°–70° |
|
|
Max speed |
180°/s (azimuth) |
|
|
Physical |
Weight |
≤60 kg (host) |
|
Dimensions |
≤900×460×450 mm |
|
|
Power |
DC24V |
|
|
Peak power |
＜300 W |
|
|
Protection |
IP65 |
|
|
Operating temp |
-20℃～+60℃ |
Mechanical Drawing
Application Scenarios
Border & Coastal Defense
Border line and coastal airspace security monitoring.
Key Area Security
Important regional airspace precaution and risk control.
Critical Infrastructure
Protection of oil fields, depots and airport peripheral airspace
Public Safety
Airspace surveillance for large parks and public zones
Key Functions & Advantages
- Purely passive detection: No active electromagnetic emission, strong concealment, anti-interference.
- Dual-band fusion imaging: Infrared + visible light for all-day, all-weather operation.
- 360° omnidirectional search: Three-speed adjustable, full coverage without blind spots.
- Dual-mode high-precision tracking: Auto / manual tracking with adaptive zoom.
- Real-time 3D positioning: Outputs distance, longitude, latitude and altitude via GPS.
- AI intelligent recognition: Optimized model for medium-range targets, low false alarm rate.
- Closed-loop countermeasure linkage: Seamless connection with anti-UAV disposal equipment.
- Flexible deployment: Suitable for fixed installation and vehicle-mounted mobile use.
- Rugged and reliable: IP65 protection, wide temperature range, stable outdoor performance.
Product Series & Availability
We offer a variable products to meet diverse application requirements.
1.Full-Series Electro-Optical & Radar Integrated Systems
We provide a full range of anti- UAV integrated systems with different detection ranges, optical configurations and radar bands, perfectly adapted to border outposts, key area protection, coastal defense, airport security and other high-security scenarios.
2.Standard Core Component Supply
We supply standardized SWIR/MWIR/LWIR thermal imagers, continuous zoom lenses, visible camera modules and laser rangefinders, which can be used for independent integration, replacement, upgrade and secondary development.
3.Customized Design & Manufacturing
We provide professional customized services for optical parameters, mechanical structure, installation interface, software protocol and housing to meet customer-specific application requirements.
