The F200 Long-Wave Cooled thermal imaging camera utilizes a 640×512 @ 15μm Stirling-cooled LWIR core paired with a 40mm–200mm continuous zoom lens. It features embedded image processing algorithms-including adaptive non-uniformity correction (NUC), 3D image noise filtering, adaptive high-dynamic-range (HDR) imaging, and image enhancement-to effectively optimize overall imaging quality.
Technical Specification
|
Category |
Parameter |
Technical Value |
|
Detector |
Resolution |
640 x 512 |
|
Pixel Size |
15um |
|
|
Spectral Range |
7.7um to 9.3um |
|
|
Cooling Method |
Stirling Cooled |
|
|
Optics |
Focal Length |
40mm to 200mm (5X Continuous Zoom) |
|
F-Number |
2.0 |
|
|
Field of View (FOV) |
13.69 ° x 10.97 ° to 2.75° x 2.20 ° |
|
|
Performance |
Thermal Sensitivity (NETD) |
≤ 25mK @ 25℃ |
|
Optical Axis Stability |
≤ 2 Pixels |
|
|
Output Frame Rate |
50Hz (CameraLink) |
|
|
Interfaces |
Video Output |
SDI (1080P), CameraLink (Base Mode), PAL (Optional) |
|
Communication |
RS422 |
|
|
Physical |

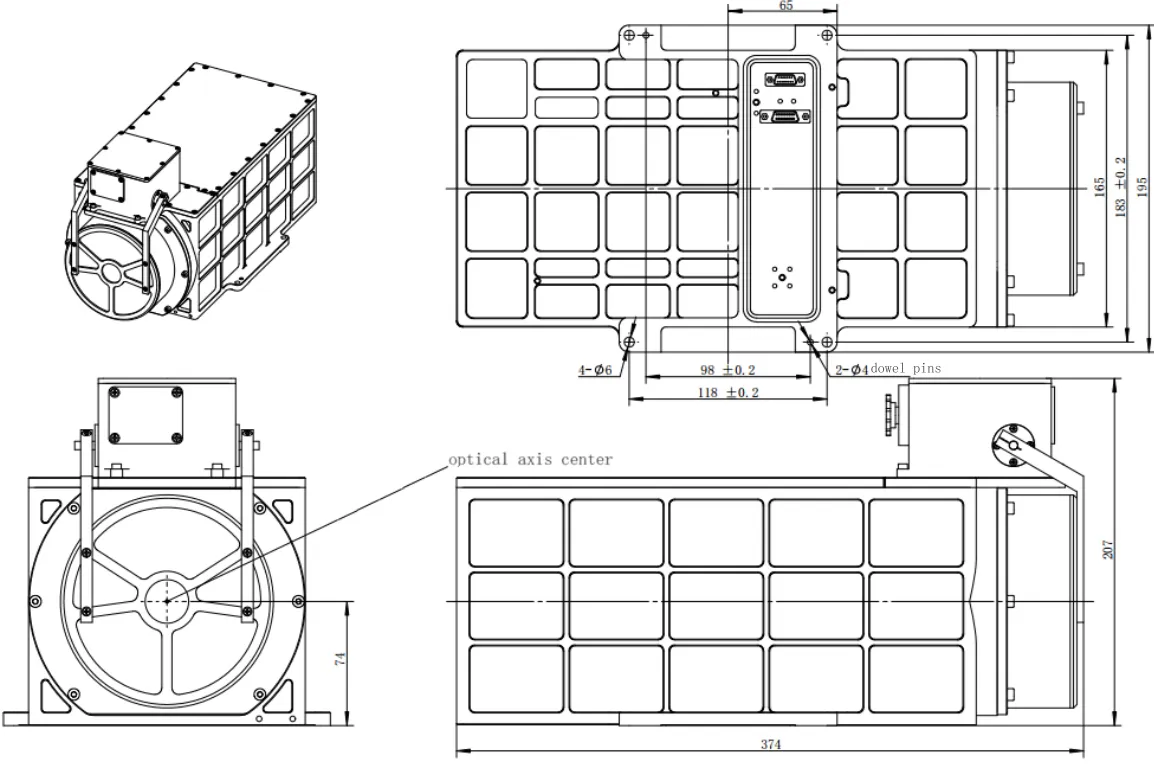

Dimensions |
≤ 385mm x 220mm x 215mm |
|
Weight |
≤ 9kg |
|
|
Power Supply |
DC 28V +/- 4V |
Key Features & Advantages
- Motorized Precision: Features electric zoom, electric focus, and a rapid one-click focus function for fast-moving targets.
- Adaptive Image Processing: Built-in 3D noise filtering and image enhancement for clear identification in complex backgrounds.
- Display Versatility: Supports horizontal, vertical, and diagonal mirroring as well as manual/automatic integration time control.
- Hardware Reliability: Built-in hardware protection and support for system diagnostics and program upgrades via serial port.
- Multi-Interface Output: High-bandwidth SDI and CameraLink outputs for professional-grade connectivity.
Application
Micro-UAV Detection
Long-range tracking and identification of small unmanned aerial systems.
Key Area Defense
High-level security for border protection, airports, and military bases.
Industrial Safety
Long-range monitoring for high-value assets and predictive maintenance in harsh environments.
Forest Fire Prevention
Early detection of heat signatures and hotspots through atmospheric smoke.
Product Series & Availability
We offer a professional portfolio of Cooled Long-Wave Infrared (LWIR) solutions, featuring Stirling-cooled technology for superior thermal sensitivity.
1. Continuous Zoom LWIR Cooled Thermal Camera
Integrated systems providing high-resolution long-range performance:
640 Series (640 × 512): 40–200mm | 50–340mm
2. LWIR Cooled Thermal Camera Modules (Cores)
High-performance modular cores designed for seamless system integration:
Resolution: Standard 640 × 512 (15µm pixel pitch).
Interfaces: Fully compatible with SDI, Camera Link, and PAL.
3. Precision LWIR Optics
Specialized optics engineered for the 7.7µm to 9.3µm waveband:
LWIR Continuous Zoom Lenses: Available as standalone motorized components.
Aperture: Large F2.0 designs for maximum detection range.
