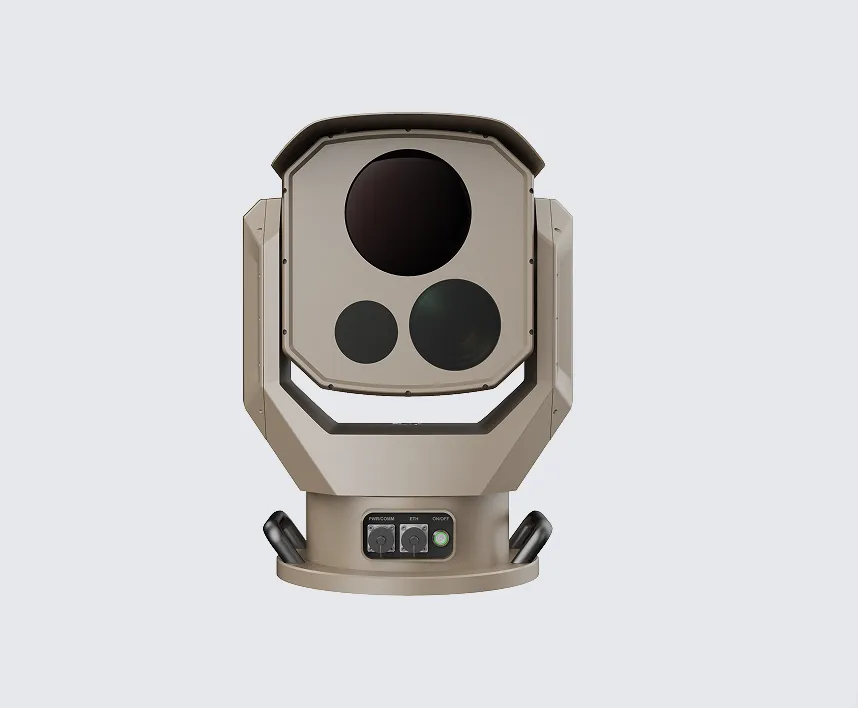

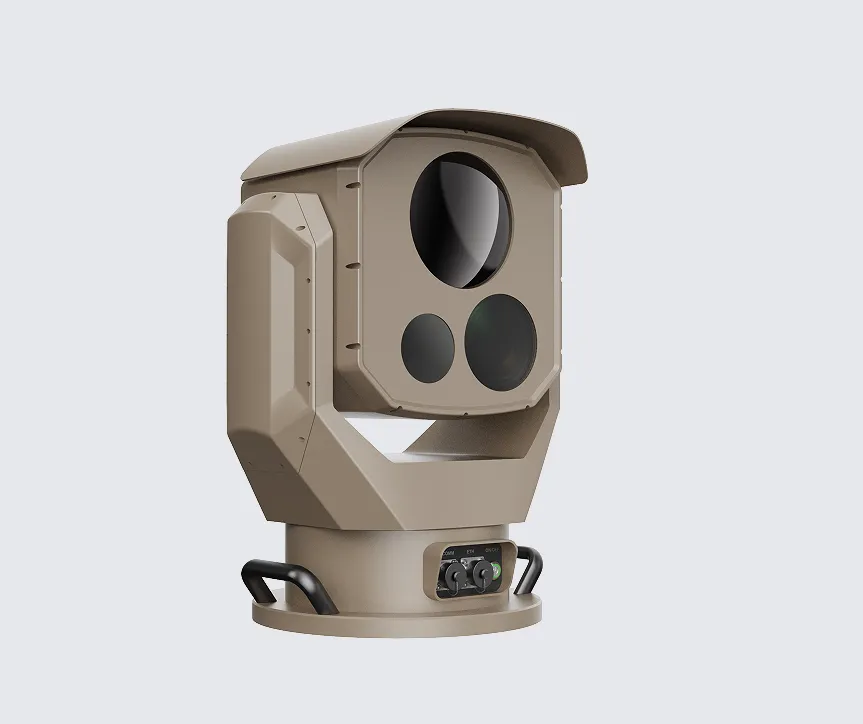

The Heavy-Duty Counter Drone Tracking System uses a real‑time multi‑target algorithm to accurately identify, capture and track personnel, vehicles and other objects.
It adopts tri‑spectrum detection (long‑wave uncooled IR + visible light + SWIR) for strong fog penetration, high stability and all‑weather performance in light rain, fog and strong light.
Lightweight (≤35 kg) and low‑power, it supports desktop, vehicle‑mounted and portable deployment for quick relocation and multi‑node networking.
AI recognition filters interferences with low false alarms and free algorithm updates. Standardized interfaces allow fast connection to external disposal systems for diverse security monitoring applications.
Technical Specification
|
Category |
Parameter |
Technical Value (LWIR / Visible / SWIR) |
|
System |
Recognition (Person: 1.8m×0.5m) |
1.2 km / 3 km / 3 km |
|
Recognition (Vehicle: 4m×6m) |
3 km / 7 km / 7 km |
|
|
Tracking (Person: 1.8m×0.5m) |
2.5 km / 5 km / 5 km |
|
|
Tracking (Vehicle: 4m×6m) |
6 km / 10 km / 10 km |
|
|
Power supply |
DC 24V ±15% (all cameras) |
|
|
Power consumption |
< 200 W (all cameras) |
|
|
LWIR Camera |
Detector |
640×512 @12 μm |
|
Waveband |
8–14 μm |
|
|
Focal length |
30 mm–150 mm (±5%) |
|
|
Visible Camera |
Resolution |
2688×1520 |
|
Waveband |
400–1100 nm |
|
|
Focal length |
15 mm–400 mm (±5%) |
|
|
SWIR Camera |
Detector |
640×512 @15 μm |
|
Waveband |
0.9–1.7 μm |
|
|
Focal length |
30 mm–390 mm (±5%) |
|
|
Pan-Tilt |
Azimuth |
0–360° unlimited rotation |
|
Pitch (Elevation) |
-20°~+50° |
|
|
Max azimuth speed |
0.1°/s – 180°/s |
|
|
Physical |
Weight |
≤35 kg (host) |
|
Dimensions |
≤Φ400mm×525mm (excl. external connectors) |
|
|
Protection |
IP65 |
|
|
Operating temp |
-30℃~+55℃ |

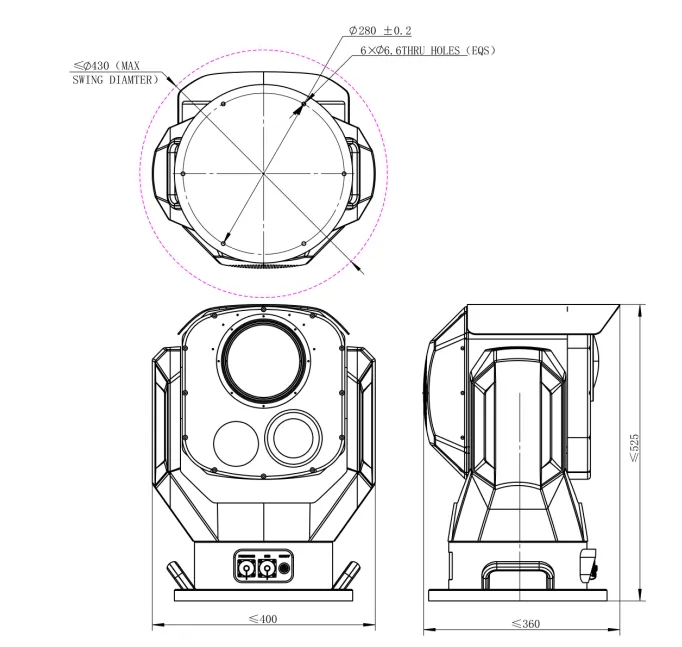

Mechanical Drawing
Application Scenarios
Ideal for 24/7 full-airspace monitoring, with network linkage and multi-mode deployment available:
- Detection & Tracking: Round-the-clock, full-airspace multi-target detection and single-target tracking.
- Border & Coastal Defense: Border patrol and coastal security surveillance.
- Critical Site Protection: Test sites, key areas, perimeter security, oil fields and depots.
- Aviation Security: Professional protection for airport perimeter and surrounding areas.
Key Functions & Advantages
- Universal adaptability: Standalone use or seamless integration with anti-UAV, security monitoring and airspace control systems.
- Multi-target real-time tracking: Fast response, high tracking accuracy, simultaneous detection of multiple targets.
- Tri-spectrum composite detection: LWIR + visible light + SWIR, enabling all-day, all-weather operation with strong fog penetration.
- Lightweight & flexible: ≤35kg host, portable for handling and relocation, supporting table, vehicle-mounted and portable deployment.
- AI-enhanced recognition: Optimized for human and vehicle targets, accurate identification, low false alarm rate, free algorithm iteration.
- Standardized linkage: Supports mainstream video and data protocols, quick connection with external disposal and control systems.
- Networkable deployment: Supports multi-node networking for multi-point intersection tracking, expanding detection coverage.
Product Series & Availability
We offer a variable products to meet diverse application requirements.
1.Full-Series Electro-Optical & Radar Integrated Systems
We provide a full range of anti-UAV integrated systems with different detection ranges, optical configurations and radar bands, perfectly adapted to border outposts, key area protection, coastal defense, airport security and other high-security scenarios.
2.Standard Core Component Supply
We supply standardized SWIR/MWIR/LWIR thermal imagers, continuous zoom lenses, visible camera modules and laser rangefinders, which can be used for independent integration, replacement, upgrade and secondary development.
3.Customized Design & Manufacturing
We provide professional customized services for optical parameters, mechanical structure, installation interface, software protocol and housing to meet customer-specific application requirements.
