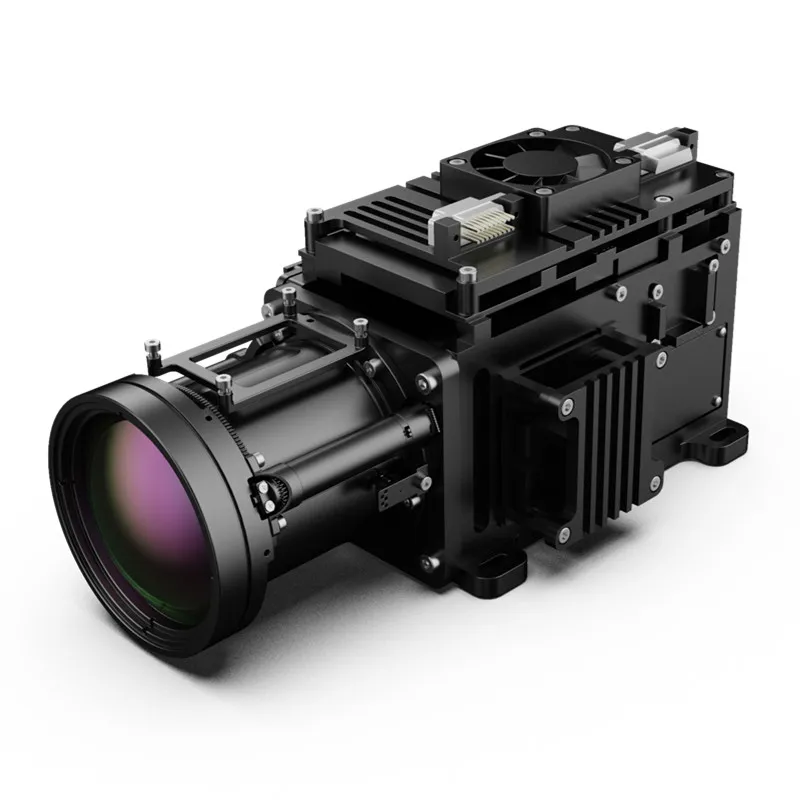

The F275mm MWIR Cooled Thermal Camera is composed of an 18mm–275mm continuous zoom lens and a 640×512 @ 15μm high-sensitivity Stirling-cooled MWIR detector, featuring embedded intelligent image processing algorithms such as adaptive non-uniformity correction (NUC), image filtering, adaptive high-dynamic-range (HDR) imaging, and image enhancement to effectively optimize imaging quality.
Technical Specification
|
Category |
Parameter |
Technical Value |
|
Detector |
Resolution |
640 × 512 |
|
Pixel Size |
15μm |
|
|
Spectral Range |
3.7μm~4.8μm(±0.2μm) |
|
|
Cooling Method |
Stirling Cooled |
|
|
Optics |
Focal Length |
18mm ~ 275mm (15X Continuous Zoom) |
|
F-Number |
5.5 |
|
|
Field of View (FOV) |
29.86°×24.08°~2.0°×1.6° |
|
|
Performance |
Thermal Sensitivity (NETD) |
≤20mK,@25℃ |
|
Optical Axis Stability |
≤3 pixels |
|
|
Output Frame Rate |
50 Hz |
|
|
Interfaces |
Video Output |
SDI (1080P), CameraLink, PAL (Optional) |
|
Communication |
RS422 |
|
|
Physical |
Dimensions |
≤200mm×120mm×96mm |
|
Weight |
≤2kg |
|
|
Power Supply |
DC 28V ± 4V |
Key Features & Advantages
- Motorized Precision: Features electric zoom, electric focus, and one-click focus for rapid, accurate target acquisition.
- Advanced Algorithms: 3D filtering and adaptive high-dynamic-range imaging ensure stable data even during rapid environmental temperature shifts.
- Flexible Display: Supports horizontal, vertical, and diagonal mirroring as well as manual/automatic brightness and contrast adjustment.
- Hardware Reliability: Includes under-voltage protection and system diagnostics via serial port program upgrades.
- Easy Integration: Standard J30J-25ZKP signal connector and HJ30J-18ZKP CameraLink interface for secure power and data transmission.
Application
Defense & Security
Border and coastal defense, optoelectronic gimbals, and tactical monitoring.
Industrial Safety
Power grid inspection, industrial leak detection, and predictive maintenance.
Environmental Monitoring
Forest fire prevention and search and rescue operations.
Product Series & Availability
We offer a market-leading portfolio of Mid-Wave Infrared (MWIR) solutions, ranging from high-definition continuous zoom systems to cooled engine modules and precision optics.
1. Continuous Zoom MWIR Cameras
Our integrated cooled camera systems provide superior thermal sensitivity and long-range performance.
640 Series (640×512):18–275mm | 40–200mm | 60–360mm | 60–600mm | 100–400mm | 23.2–640mm | 50–900mm| 88–1100mm
1280 Series (1280×1024):25–150mm | 22–720mm | 50–900mm
2. MWIR Camera Engine Modules (Cores)
Resolution Options: Available in 640 × 512 and 1280 × 1024,1280*720 focal plane arrays.
3. Optical Components
MWIR Continuous Zoom Lenses: Available as standalone components for specialized integration.
