The 3-5 Micron Infrared Camera integrates a 23mm–640mm high-zoom-ratio continuous zoom lens and a 640×512 @ 15μm high-sensitivity Stirling-cooled MWIR detector. The system features embedded intelligent image processing algorithms-including adaptive non-uniformity correction (NUC), image noise filtering, adaptive high-dynamic-range (HDR) imaging, and image enhancement-to effectively optimize imaging quality.
Technical Specification
|
Category |
Parameter |
Technical Value |
|
Detector |
Resolution |
640 x 512 |
|
Pixel Size |
15 um |
|
|
Spectral Range |
3.7um to 4.8um |
|
|
Cooling Method |
Stirling Cooled |
|
|
Optics |
Focal Length |
23mm to 640mm (27.8x Continuous Zoom) |
|
Aperture |
F4.0 |
|
|
Field of View (FOV) |
23.38 ° x 18.80 ° to 0.86 ° x 0.69 ° |
|
|
Performance |
Thermal Sensitivity (NETD) |
≤ 20mK @ 25℃ |
|
Optical Axis Stability |
≤ 2 Pixels |
|
|
Output Frame Rate |
50 Hz |
|
|
Interfaces |
Video Output |
SDI (1080P), CameraLink, PAL (Optional) |
|
Communication |
RS422 |
|
|
Physical |

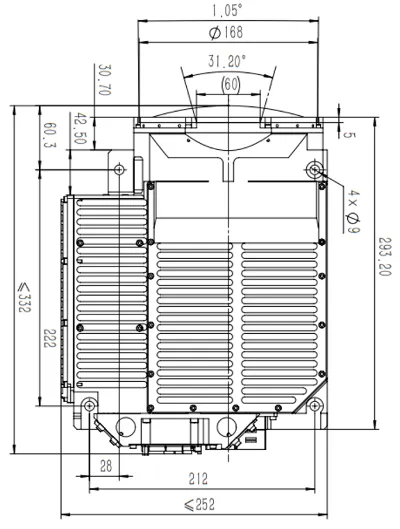

Dimensions |
≤ 332mm x 252mm x 176mm |
|
Weight |
≤ 9.2 kg |
|
|
Power Supply |
DC 28V +/- 4V |
Key Features & Advantages
- Motorized Precision: Supports electric zoom, motorized focus, and rapid one-click focusing for accurate target acquisition.
- Display Versatility: Supports horizontal, vertical, and diagonal mirroring as well as manual/automatic brightness and contrast adjustment.
- Advanced Control: Features switchable internal and external synchronization to match complex laboratory or field setups.
- System Reliability: Built-in hardware protection and support for system diagnostics and program upgrades via serial port.
- Multi-Interface Connectivity: Equipped with a J30J-25ZKP connector for power/communication and an HJ30J-18ZKP for high-bandwidth CameraLink data.
Application
Optoelectronic Platforms
Core sensor for high-end tracking turntables and theodolites.
Anti-UAV Systems
Ultra-long-range detection and tracking of small unmanned aerial vehicles.
Key Area Defense
High-level security for border defense, airports, and vital infrastructure.
Industrial Safety
Forest fire prevention and long-range industrial monitoring.
Product Series & Availability
We offer a market-leading portfolio of Mid-Wave Infrared (MWIR) solutions, ranging from high-definition continuous zoom systems to cooled engine modules and precision optics.
1. Continuous Zoom MWIR Cameras
Our integrated cooled camera systems provide superior thermal sensitivity and long-range performance.
640 Series (640×512):18–275mm | 40–200mm | 60–360mm | 60–600mm | 100–400mm | 23.2–640mm | 50–900mm| 88–1100mm
1280 Series (1280×1024):25–150mm | 22–720mm | 50–900mm
2. MWIR Camera Modules (Cores)
Resolution Options: Available in 640 × 512 and 1280 × 1024,1280*720 focal plane arrays.
3. Optical Components
MWIR Continuous Zoom Lenses: Available as standalone components for specialized integration.
