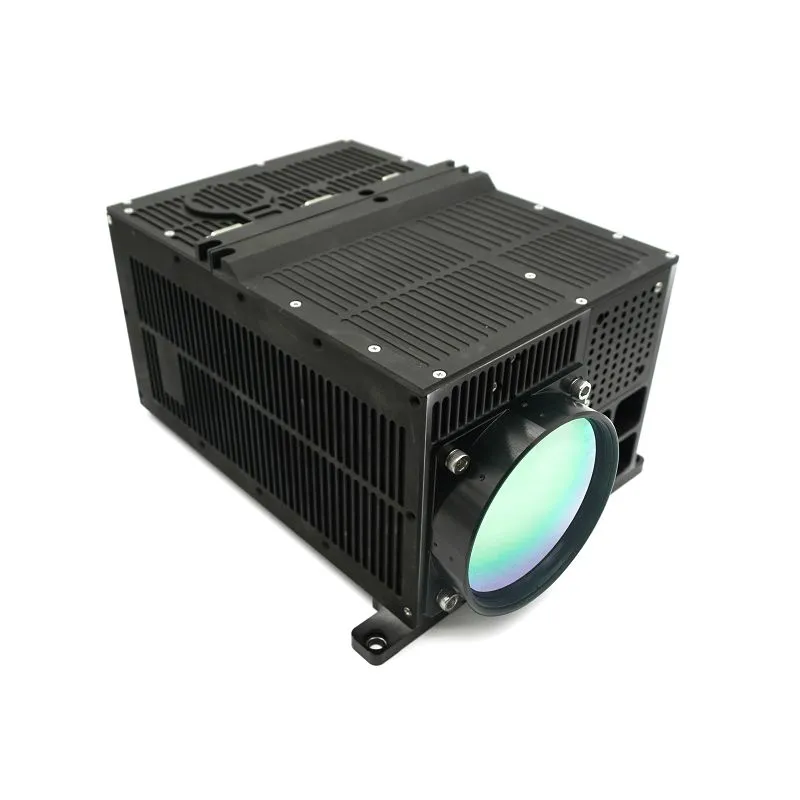

MWIR Cooled Thermal Imager

The MWIR Cooled Thermal Imager is optimized for high-speed panoramic surveillance and 360-degree target tracking.
● Specialized for rotating platforms with a fast search speed of 2 seconds per rotation.
● Uses a high-linearity mirror to ensure superior image quality during rapid sweeps.
● Stirling-cooled core (NETD ≤ 20mK) for identifying minute signatures over vast distances.

Send Inquiry

The F360 MWIR Cooled Thermal Imager is primarily composed of a 60mm–360mm panoramic continuous zoom lens, a high-performance scanning mirror, and a high-sensitivity 640×512 @ 15μm imaging detector assembly. The system features embedded image processing algorithms-including adaptive non-uniformity correction (NUC), 3D noise filtering, adaptive high-dynamic-range (HDR) imaging, and image enhancement-to effectively optimize overall image quality.

Technical Specification

Category	Parameter	Technical Value
Detector	Resolution	640 x 512
	Pixel Size	15 um
	Spectral Range	3.7um to 4.8um
	Cooling Method	Stirling Cooled (≤ 8 min startup @ 25℃)
Optics	Focal Length	60mm to 360mm (6X Continuous Zoom)
	F-Number	4.0
	Field of View (FOV)	9.15 ° x 7.32 ° to 1.53 ° x 1.22 °
Performance	Thermal Sensitivity (NETD)	≤ 20mK @ 25℃
	Optical Axis Stability	≤ 2 Pixels
	Output Frame Rate	50 Hz (CameraLink) / 25 Hz (SDI)
Interfaces	Video Output	SDI (1080P), CameraLink (Base Mode)
Interfaces	Communication	RS422
Physical	Dimensions	≤ 382mm x 230mm x 160mm
	Weight	≤ 6 kg
	Power Supply	DC 24V +/- 2V

Key Features & Advantages

Panoramic Search & Gaze: Dual-mode design supports both high-speed 360-degree searching and continuous zoom staring.
Advanced Image Algorithms: Includes 3D image noise filtering and adaptive high-dynamic dimming for superior target contrast.
One-Click Focus: Supports motorized zoom, motorized focus, and rapid one-click focusing for fast-moving targets.
Hardware Reliability: Built-in under-voltage protection and support for system diagnostics via serial port upgrades.
Multi-Interface Output: High-definition SDI (1080P) and high-bandwidth CameraLink outputs for versatile system connectivity.

Application

Border & Coastal Defense

360-degree all-weather monitoring and target identification.

Anti-UAV Systems

Rapid searching, tracking, and identification of unmanned aerial vehicles.

Key Infrastructure Protection

High-speed surveillance for airports, power plants, and government facilities.

Search & Rescue

Wide-area searching for heat signatures in complex terrain or maritime environments.

Product Series & Availability

We offer a market-leading portfolio of Mid-Wave Infrared (MWIR) solutions, ranging from high-definition continuous zoom systems to cooled engine modules and precision optics.

1. Continuous Zoom MWIR Cameras

Our integrated cooled camera systems provide superior thermal sensitivity and long-range performance.

640 Series (640×512):18–275mm | 40–200mm | 60–360mm | 60–600mm | 100–400mm | 23.2–640mm | 50–900mm| 88–1100mm

1280 Series (1280×1024):25–150mm | 22–720mm | 50–900mm

2. MWIR Camera Modules (Cores)

Resolution Options: Available in 640 × 512 and 1280 × 1024,1280*720 focal plane arrays.

3. Optical Components

MWIR Continuous Zoom Lenses: Available as standalone components for specialized integration.
