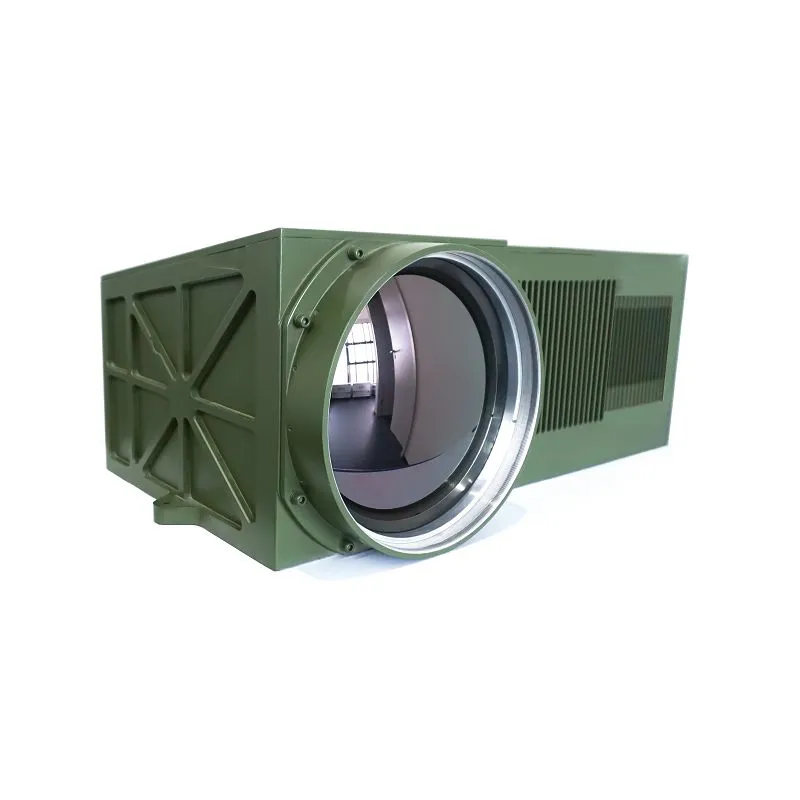

The F400 MWIR Camera utilizes a 640×512 @ 25μm Stirling-cooled MWIR core paired with a 100mm–400mm continuous zoom lens. It features embedded image processing algorithms-including adaptive non-uniformity correction (NUC), 3D image filtering, adaptive high-dynamic-range (HDR) imaging, and image enhancement-to effectively improve overall imaging quality.
Technical Specification
|
Category |
Parameter |
Technical Value |
|
Detector |
Resolution |
640 x 512 |
|
Pixel Size |
25 um |
|
|
Spectral Range |
3.7um to 4.8um |
|
|
Cooling Method |
Stirling Cooled (≤ 8 min startup @ 25℃) |
|
|
Optics |
Focal Length |
100mm to 400mm (4X Continuous Zoom) |
|
F-Number |
2.0 |
|
|
Field of View (FOV) |
2.29 ° x 1.83 ° to 9.1° x 7.3 ° |
|
|
Performance |
Thermal Sensitivity (NETD) |
≤ 15mK @ 25℃ |
|
Optical Axis Stability |
≤ 2 Pixels |
|
|
Output Frame Rate |
50 Hz |
|
|
Interfaces |
Video Output |
SDI (1080P), CameraLink (Base Mode), PAL |
|
Communication |
RS422 |
|
|
Physical |
Dimensions |
≤ 650mm x 340mm x 235mm |
|
Weight |
≤ 35 kg |
|
|
Power Supply |
DC 28V +/- 4V |
Key Features & Advantages
- Motorized Precision: Supports motorized zoom, motorized focus, and rapid one-click focusing for fast-moving targets.
- Adaptive Image Algorithms: Includes 3D image noise filtering and adaptive high-dynamic dimming for superior target contrast.
- Flexible Display: Supports horizontal, vertical, and diagonal mirroring as well as manual/automatic integration time control.
- Hardware Reliability: Built-in hardware protection and support for system diagnostics and program upgrades via serial port.
- Multi-Interface Output: High-definition SDI (1080P) and high-bandwidth CameraLink outputs for versatile professional connectivity.
Application
Anti-UAV Defense
Detection and tracking of small unmanned aerial vehicles.
Critical Infrastructure
High-level security for border defense, airports, and power plants.
Industrial Safety
Long-range industrial monitoring and forest fire prevention.
Platform Integration
Core sensor for high-end optoelectronic turrets and surveillance pods.
Product Series & Availability
We offer a market-leading portfolio of Mid-Wave Infrared (MWIR) solutions, ranging from high-definition continuous zoom systems to cooled engine modules and precision optics.
1. Continuous Zoom MWIR Cameras
Our integrated cooled camera systems provide superior thermal sensitivity and long-range performance.
640 Series (640×512):18–275mm | 40–200mm | 60–360mm | 60–600mm | 100–400mm | 23.2–640mm | 50–900mm| 88–1100mm
1280 Series (1280×1024):25–150mm | 22–720mm | 50–900mm
2. MWIR Camera Modules (Cores)
Resolution Options: Available in 640 × 512 and 1280 × 1024,1280*720 focal plane arrays.
3. Optical Components
MWIR Continuous Zoom Lenses: Available as standalone components for specialized integration.
