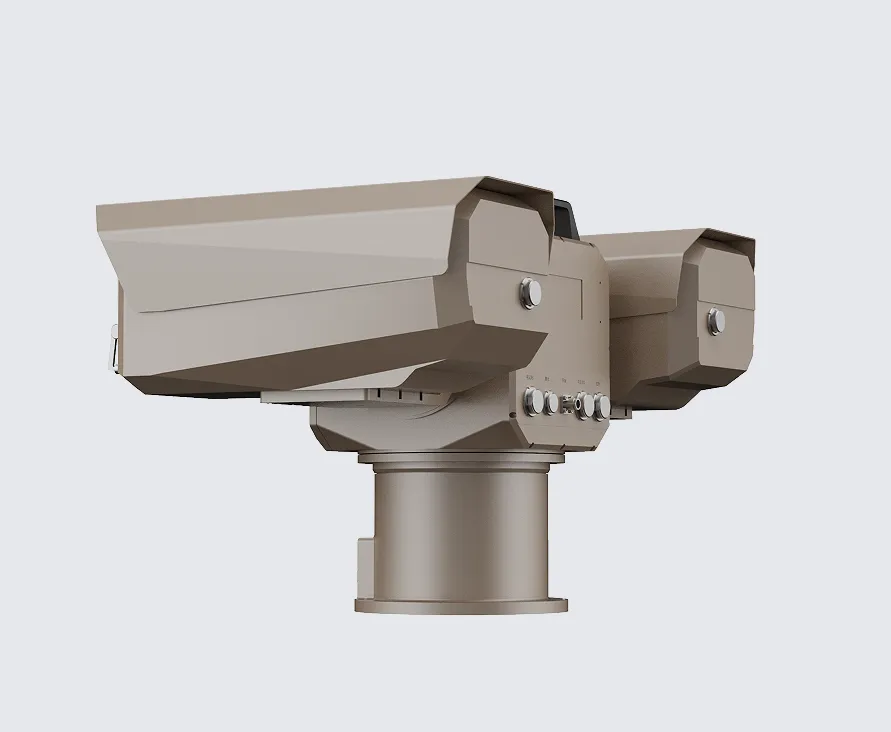

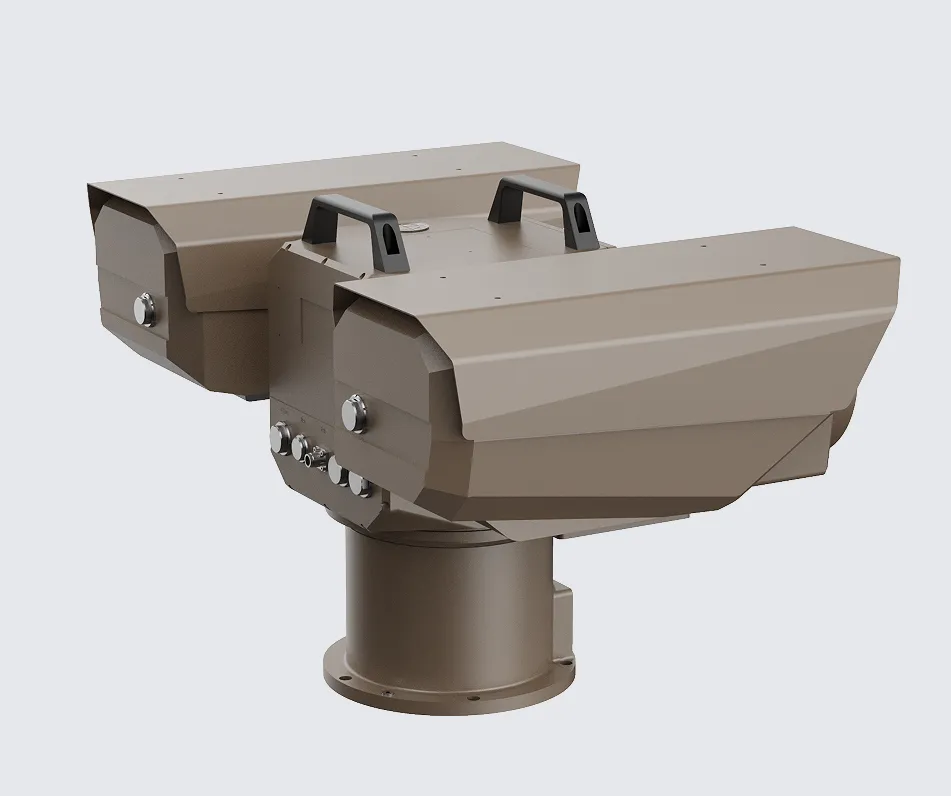

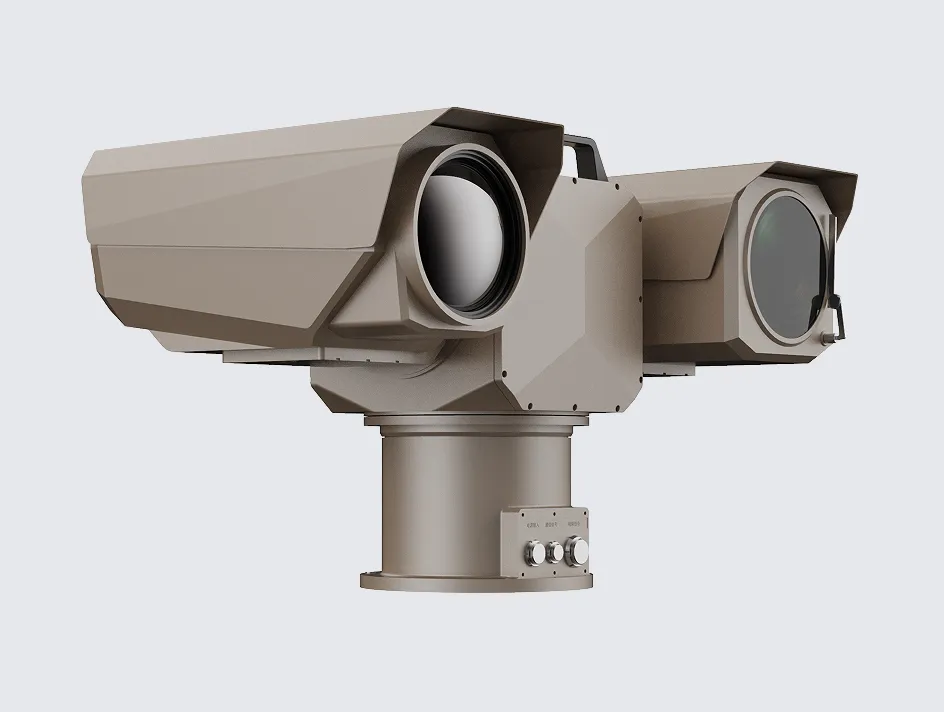

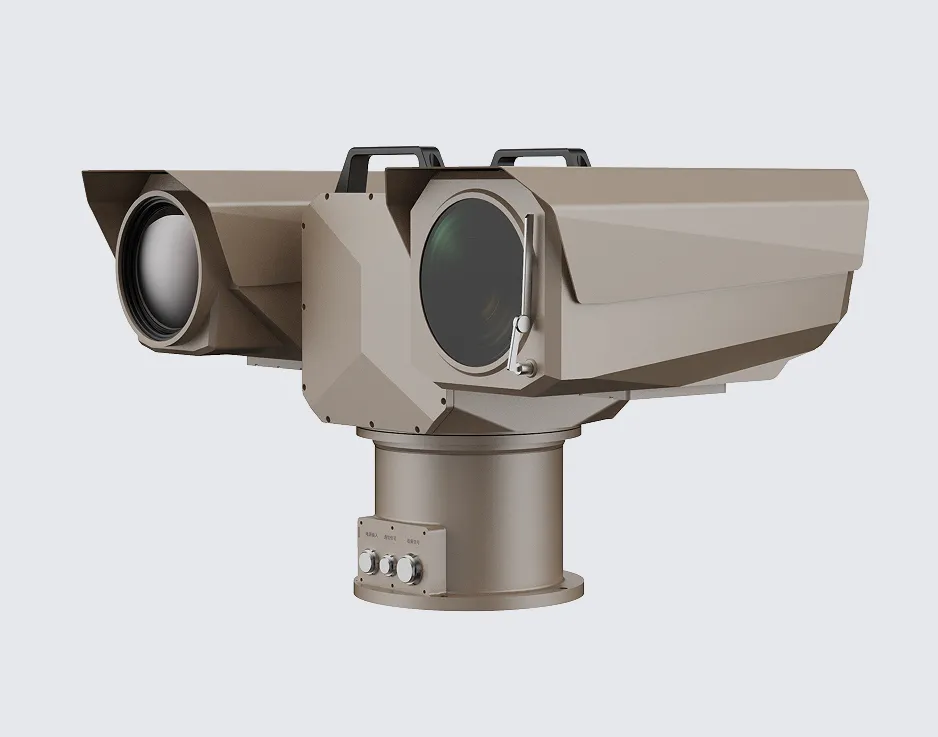

The High-Precision PTZ Thermal Camera uses a real‑time multi‑target algorithm for accurate tracking of low‑slow‑small targets. Dual‑band (IR + visible light) detection enables 24/7 all‑weather operation against light fog and strong light. Weighing ≤40 kg with ≤100 W peak power, it supports table-mounted, vehicle‑mounted and portable rapid deployment. AI recognition minimizes false alarms with free algorithm upgrades. Standardized interfaces connect quickly to external countermeasure systems; modular design allows flexible payload replacement and fast alignment.
Technical Specification
|
Category |
Parameter |
Technical Value |
|
System |
IR tracking range |
≥2.2 km (DJI Phantom 4) |
|
Visible tracking range |
≥3 km |
|
|
Power supply |
DC 24V |
|
|
Peak power consumption |
≤100 W |
|
|
Angle measurement accuracy |
≤0.05° |
|
|
Thermal Camera |
Detector |
640×512 long-wave uncooled |
|
Waveband |
8–14 μm |
|
|
Focal length |
30–150 mm |
|
|
Max frame rate |
50 fps |
|
|
Visible Camera |
Resolution |
1920×1080 |
|
Optical zoom |
54× |
|
|
Focal length |
10–540 mm |
|
|
Defogging |
Optical / Electronic |
|
|
LRF (Optional) |
Wavelength |
1535±5 nm |
|
Ranging range |
≥2 km |
|
|
Pan-Tilt |
Azimuth |
0–360° unlimited rotation |
|
Pitch |
-10°~+70° |
|
|
Physical |
Weight |
≤40 kg (host) |
|
Dimensions |
≤685×380×420 mm |
|
|
Protection |
IP65 |
|
|
Operating temp |
-20℃~+60℃ |

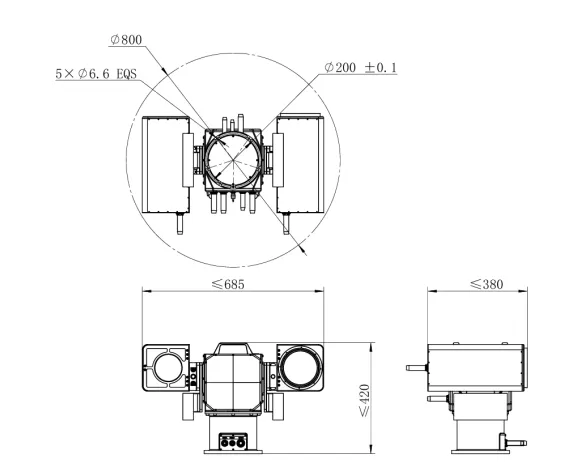

Mechanical Drawing
Application Scenarios
Ideal for all-day, all-airspace surveillance, featuring networking capability and flexible deployment:
- Detection & Tracking: 24-hour full-airspace multi-target detection and single-target tracking.
- Border & Coastal Defense: Border patrol and coastal perimeter security.
- Critical Infrastructure: Protection of key areas, test sites, oil fields and depots.
- Aviation & Perimeter Security: Airport safeguarding and full-site perimeter protection.
Key Functions & Advantages
- Universal adaptability: Standalone use or seamless integration with anti-UAV, security and airspace control systems.
- Multi-target real-time tracking: Fast response, high tracking accuracy, simultaneous detection of multiple targets.
- Dual-band composite detection: Infrared + visible light for all-day operation, stable in harsh environments.
- Lightweight & flexible: ≤40kg host, supporting table, vehicle-mounted and portable deployment for rapid relocation.
- Low power consumption: DC24V low-voltage supply, peak power ≤100W, energy-saving and efficient.
- AI-enhanced recognition: Optimized for "low, slow and small" targets, low false alarm rate, free algorithm iteration.
- Standardized linkage: Supports mainstream protocols, quick connection with external disposal and control systems.
- Modular design: Flexible load replacement, rapid optical and pitch axis alignment and balancing.
Product Series & Availability
We offer a variable products to meet diverse application requirements.
1.Full-Series Electro-Optical & Radar Integrated Systems
We provide a full range of anti-UAV integrated systems with different detection ranges, optical configurations and radar bands, perfectly adapted to border outposts, key area protection, coastal defense, airport security and other high-security scenarios.
2.Standard Core Component Supply
We supply standardized SWIR/MWIR/LWIR thermal imagers, continuous zoom lenses, visible camera modules and laser rangefinders, which can be used for independent integration, replacement, upgrade and secondary development.
3.Customized Design & Manufacturing
We provide professional customized services for optical parameters, mechanical structure, installation interface, software protocol and housing to meet customer-specific application requirements.
