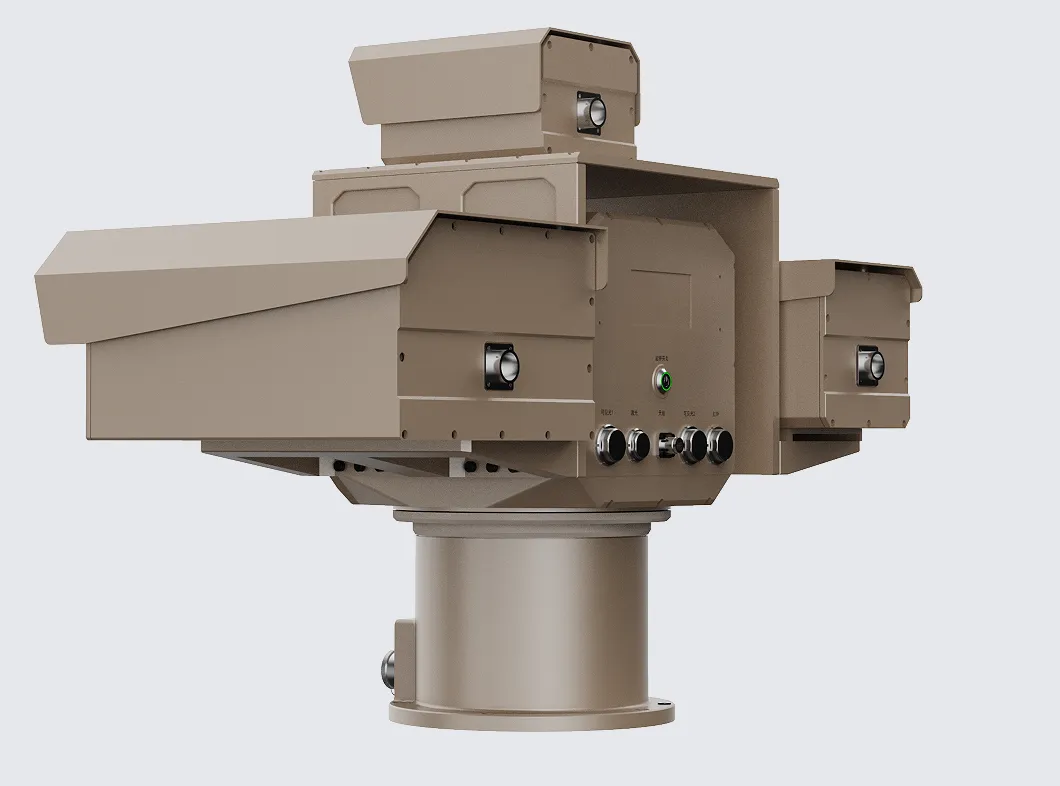

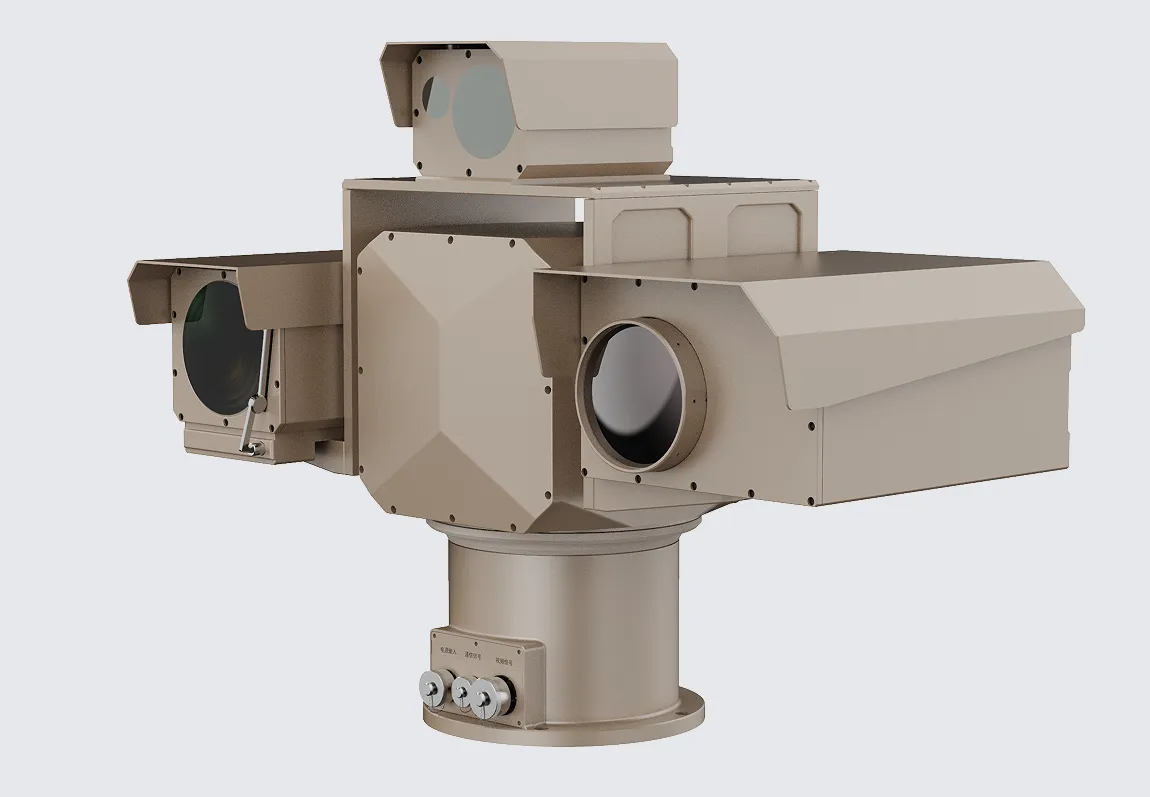

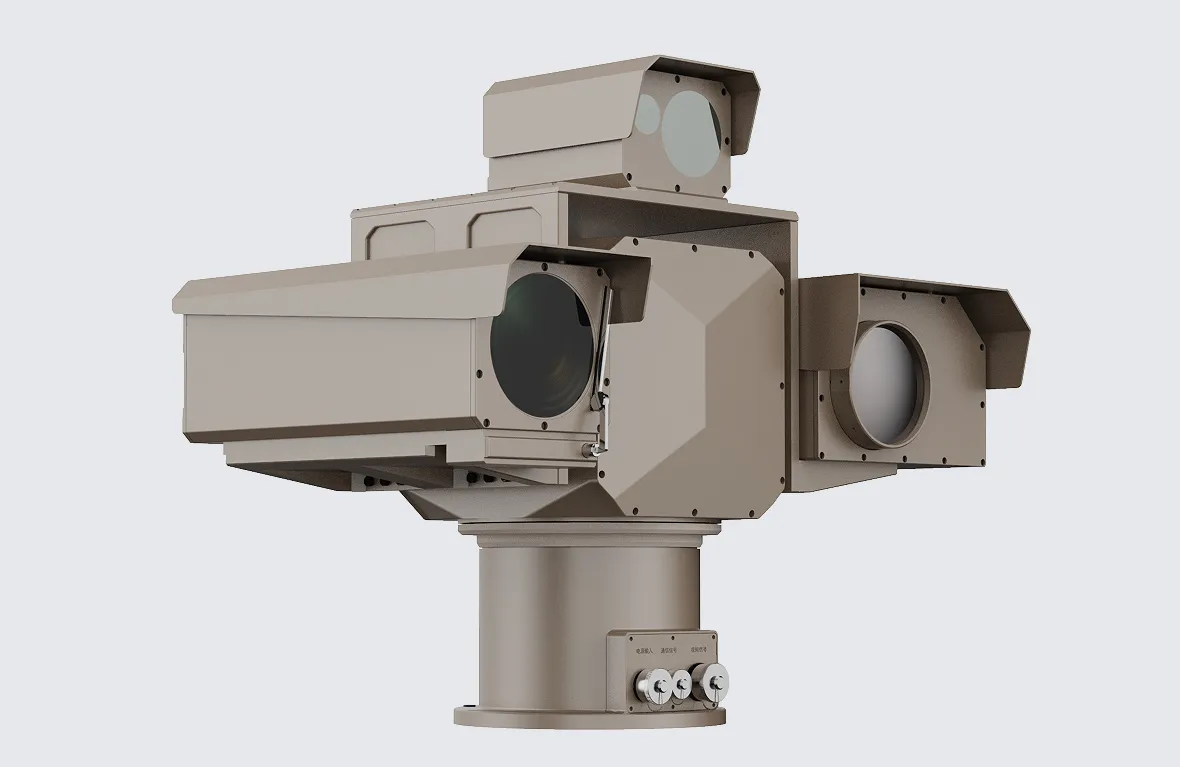

The Long Range Border Surveillance System adopts zero-radiation passive detection for stealth and anti-interference performance.It integrates infrared and visible light to enable all-day all-weather detection in dark, fog, rain and strong light.It supports 360° adjustable scanning, auto/manual tracking and GPS real-time target positioning.Optimized AI ensures high accuracy and low false alarms against medium-range low-slow-small targets.IP65 rugged modular design allows fixed and vehicle-mounted deployment for fast field application.
Technical Specification
|
Category |
Parameter |
Technical Value |
|
Overall |
IR search range |
≥3.5 km (DJI Phantom 4) |
|
IR tracking range |
≥4 km |
|
|
Visible detection range |
≥5 km |
|
|
IR search range |
360°×2.0° ~ 360°×10° |
|
|
IR search speed |
360°/s, 180°/s, 120°/s |
|
|
Angle measurement accuracy |
≤0.05° |
|
|
Laser ranging accuracy |
≤±5 m |
|
|
Thermal Camera |
Detector |
1280×1024 medium-wave cooled |
|
Waveband |
3.7–4.8 μm |
|
|
Optical zoom |
6× |
|
|
Focal length |
60–360 mm |
|
|
Day Camera |
Resolution |
1920×1080 |
|
Optical zoom |
37.5× |
|
|
Focal length |
20–750 mm |
|
|
Waveband |
0.4–1.1 μm |
|
|
Defogging |
Optical / Electronic |
|
|
LRF |
Wavelength |
1535±5 nm |
|
Ranging range |
≥3 km Target: DJI Phantom 4 |
|
|
Pan-Tilt |
Azimuth |
0–360° continuous |
|
Pitch |
-10°–70° |
|
|
Max speed |
180°/s (azimuth) |
|
|
Physical |
Weight |
≤60 kg (host) |
|
Dimensions |
≤900×460×450 mm |
|
|
Power |
DC24V |
|
|
Peak power |
＜300 W |
|
|
Protection |
IP65 |
|
|
Operating temp |
-20℃～+60℃ |

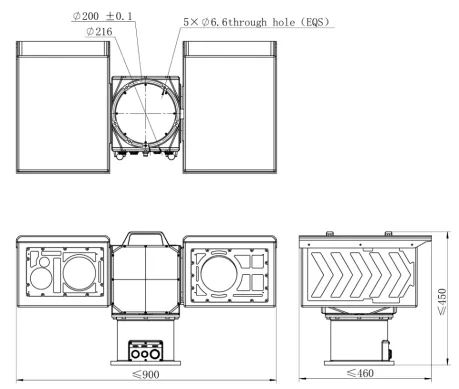

Mechanical Drawing
Application Scenarios
Border & Coastal Defense
Full-range airspace monitoring along borders and coastal lines.
Key Area Security
Airspace surveillance and protection for core key regions
Critical Infrastructure
Perimeter security for oil fields, depots and airport premises.
Public Venue Protection
Airspace precaution and surveillance for parks and large public areas.
Key Functions & Advantages
- Fully passive detection: No electromagnetic emission, high concealment, anti-interference.
- High-resolution infrared: 1280×1024 cooled detector for clearer long-distance imaging.
- 360° omnidirectional search: Large field of view & 3-speed adjustment for full coverage.
- Dual-band fusion: Infrared + visible light for all-day, all-weather operation.
- Dual-mode tracking: Auto / manual tracking with adaptive zoom for clear target imaging.
- High-precision positioning: Real-time 3D coordinate & GPS linkage for accurate guidance.
- AI intelligent recognition: Optimized model, low false alarm rate, support algorithm iteration.
- Closed-loop linkage: Compatible with anti-UAV disposal equipment for full-process defense.
- Flexible deployment: Fixed / vehicle-mounted compatible, modular & easy to install.
- Rugged reliability: IP65, wide temperature range, suitable for harsh outdoor environments.
Product Series & Availability
We offer a variable products to meet diverse application requirements.
1.Full-Series Electro-Optical & Radar Integrated Systems
We provide a full range of anti-UAV integrated systems with different detection ranges, optical configurations and radar bands, perfectly adapted to border outposts, key area protection, coastal defense, airport security and other high-security scenarios.
2.Standard Core Component Supply
We supply standardized SWIR/MWIR/LWIR thermal imagers, continuous zoom lenses, visible camera modules and laser rangefinders, which can be used for independent integration, replacement, upgrade and secondary development.
3.Customized Design & Manufacturing
We provide professional customized services for optical parameters, mechanical structure, installation interface, software protocol and housing to meet customer-specific application requirements.
