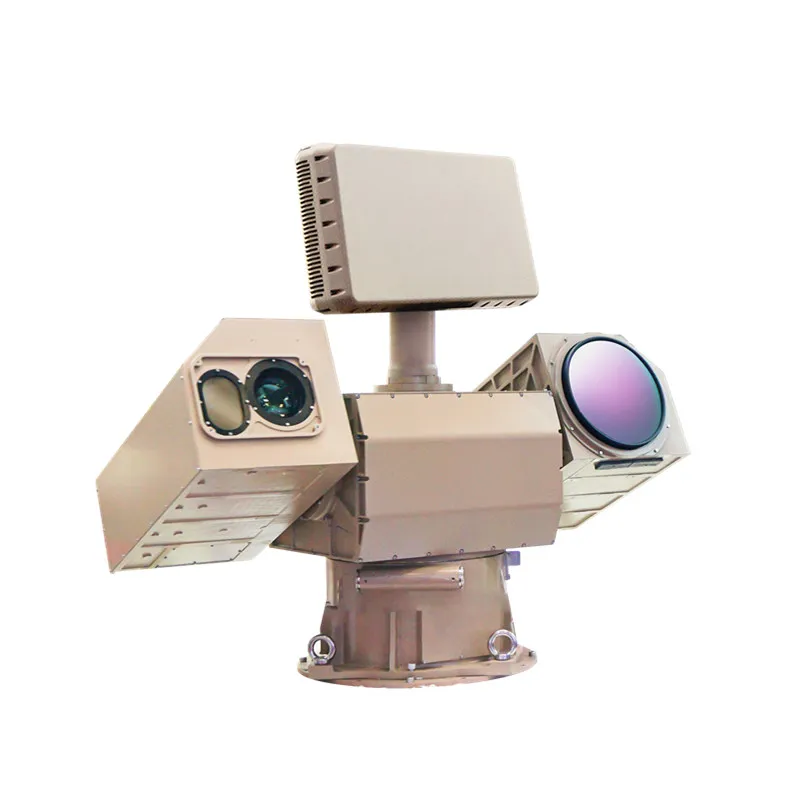

This Radar Integrated EO/IR System integrates multi-source data from radar, infrared, visible light and laser to realize all-day and all-weather target detection, maintaining stable performance in night, rain, fog and strong light. It supports automatic/manual dual-mode tracking and adaptive zoom during tracking.
It can calculate the 3D coordinates and distance of targets in real time with high precision. With an IP65 protection rating and a wide operating temperature range, it is suitable for long-term autonomous operation in harsh environments. The system supports data visualization, storage and playback, and is compatible with mainstream security management platforms for secondary development.
Technical Specification
|
Category |
Parameter |
Technical Value |
|
Overall |
Radar detection range (DJI Phantom 4) |
≥8 km |
|
IR tracking range |
≥5 km |
|
|
Visible tracking range |
≥6 km |
|
|
Simultaneous target batches |
≥200 |
|
|
Tracking angle accuracy |
≤0.05° |
|
|
Laser ranging accuracy |
≤±5 m |
|
|
Thermal Camera |
Detector |
640×512 mid-wave cooled |
|
Waveband |
3.7–4.8 μm |
|
|
Optical zoom |
10× |
|
| Day Camera |
Resolution |
1920×1080 |
|
Optical zoom |
37.5× |
|
|
Waveband |
0.4–1.1 μm |
|
|
LRF |
Wavelength |
1535 nm |
|
Ranging range |
≥3 km |
|
|
Radar |
Frequency band |
X-band |
|
Scanning range |
Azimuth 0°–360°; Pitch 0°–60° |
|
|
PTZ |
Azimuth |
0°–360° continuous |
|
Pitch |
-10°–70° |
|
|
Physical |
Weight |
≤235 kg |
|
Dimensions |
≤1220×600×1500 mm |
|
|
Power |
DC48V, peak 900W |
|
|
Protection |
IP65 |
|
|
Operating temp |
-40℃~+60℃ |
Mechanical Drawing
Application Scenarios
Defense
Border outposts, coastal defense, and military base perimeter protection.
Critical Infrastructure
Security for oil and gas fields, power plants, and government facilities.
Civil Aviation
Airport terminal area protection and "Low, Slow, and Small" target management.
Environmental Monitoring
Forest fire prevention, wildlife monitoring, and large-scale ecological surveillance.
Key Functions & Advantages
- X-band radar + electro-optical composite detection, strong detection capability for "low, slow and small" targets.
- AI intelligent identification and classification, high accuracy, low false alarm rate.
- Ultra-long detection and tracking distance, high-precision positioning and measurement.
- 360° panoramic search, automatic/manual dual-mode tracking with adaptive zoom.
- All-day and all-weather operation, adaptable to harsh outdoor environments.
- Supports disposal system linkage, data visualization, storage and playback.
- Compatible with Windows, Linux and domestic operating systems.
- Rugged and reliable design, suitable for fixed and vehicle-mounted deployment.
Product Series & Availability
We offer a variable products to meet diverse application requirements.
1. Full-Series Electro-Optical & Radar Integrated Systems
We provide a full range of anti-UAV integrated systems with different detection ranges, optical configurations and radar bands, perfectly adapted to border outposts, key area protection, coastal defense, airport security and other high-security scenarios.
2. Standard Core Component Supply
We supply standardized SWIR/MWIR/LWIR thermal imagers, continuous zoom lenses, visible camera modules and laser rangefinders, which can be used for independent integration, replacement, upgrade and secondary development.
3. Customized Design & Manufacturing
We provide professional customized services for optical parameters, mechanical structure, installation interface, software protocol and housing to meet customer-specific application requirements.
