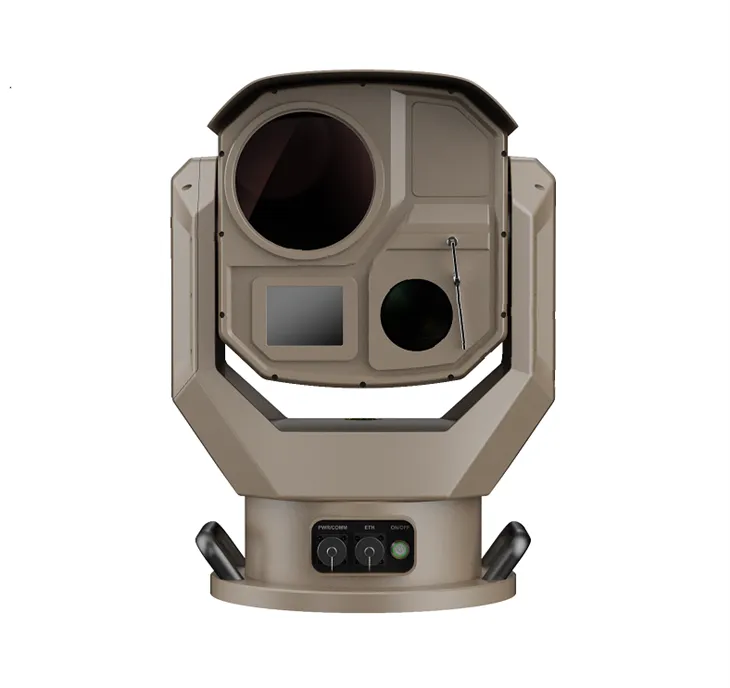

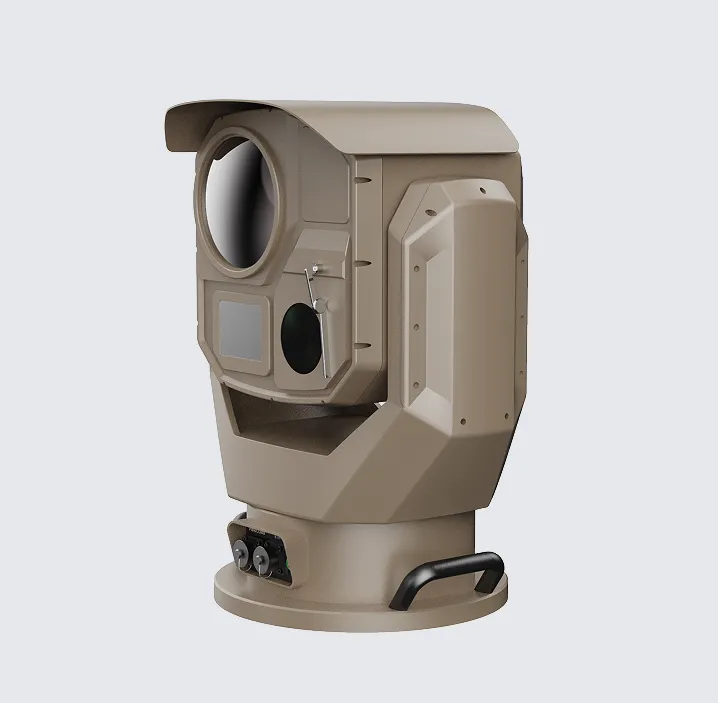

The All-Weather EO IR Pan and Tilt System adopts a "deep learning + traditional image processing" fusion algorithm to realize high-efficiency 360° omnidirectional search. It combines long-wave infrared and visible light for all-day, all-weather detection, maintaining stable performance in darkness, fog and strong light. The lightweight body (≤32kg) supports pole-mounted, table-mounted and vehicle-mounted deployment. It features AI intelligent recognition, low false alarm rate, standardized interfaces and strong outdoor reliability, making it ideal for conventional low-altitude airspace security.
Technical Specification
|
Category |
Parameter |
Technical Value |
|
System |
IR search range |
≥1.2 km (DJI Phantom 4) |
|
IR tracking range |
≥1.8 km |
|
|
Visible tracking range |
≥3 km |
|
|
IR panoramic FOV |
360°×10.9° |
|
|
IR search speed |
≥144°/s |
|
|
Angle measurement accuracy |
≤0.05° |
|
|
Thermal Camera |
Detector |
1280×1024 long-wave uncooled |
|
Waveband |
8–14 μm |
|
|
Focal length |
80 mm |
|
|
Visible Camera |
Resolution |
1920×1080 |
|
Optical zoom |
54× |
|
|
Focal length |
10–540 mm |
|
|
Waveband |
400–900 nm |
|
|
Defogging |
Optical / Electronic |
|
|
LRF (Optional) |
Wavelength |
1535±5 nm |
|
Ranging range |
≥2 km |
|
|
Accuracy |
≤±5 m |
|
|
Pan-Tilt |
Azimuth |
0–360° continuous |
|
Pitch |
-20°~+70° |
|
|
Physical |
Weight |
≤32 kg (host) |
|
Dimensions |
≤Φ400mm×525mm |
|
|
Power |
DC24V |
|
|
Peak power |
＜300 W |
|
|
Protection |
IP65 |
|
|
Operating temp |
-20℃~+55℃ |

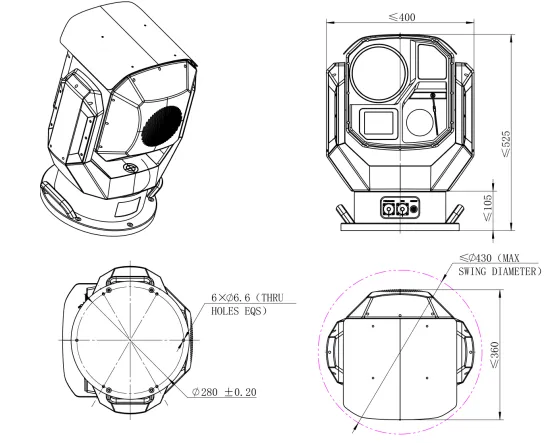

Mechanical Drawing
Application Scenarios
Border & Coastal Defense: Full airspace surveillance along borderlines and coastal zones.
Perimeter Security: All-round protection for premises and restricted areas.
Critical Infrastructure: Safety monitoring for oil fields, depots and airport perimeters.
Public & Key Areas: Prevention and control for parks and core key regional sites.
Key Functions & Advantages
- High-resolution infrared: 1280×1024 long-wave uncooled thermal imager for clear target detection.
- 360° panoramic search: Large FOV & high-speed scanning, full coverage without blind spots.
- Lightweight design: ≤32kg, easy for pole, table and vehicle-mounted installation.
- Dual-band fusion: Infrared + visible light for all-day, all-weather operation.
- AI intelligent recognition: Optimized target model, low false alarm rate, support iteration.
- High-precision tracking: Stable auto-tracking with adaptive zoom for clear imaging.
- Standardized linkage: RTSP/UDP protocol, compatible with radar, spectrum and disposal equipment.
- Flexible deployment: Fixed/vehicle-mounted/portable, quick to install and use.
- Outdoor ruggedness: IP65, wide temperature range, reliable in harsh environments.
Product Series & Availability
We offer a variable products to meet diverse application requirements.
1.Full-Series Electro-Optical & Radar Integrated Systems
We provide a full range of anti- UAV integrated systems with different detection ranges, optical configurations and radar bands, perfectly adapted to border outposts, key area protection, coastal defense, airport security and other high-security scenarios.
2.Standard Core Component Supply
We supply standardized SWIR/MWIR/LWIR thermal imagers, continuous zoom lenses, visible camera modules and laser rangefinders, which can be used for independent integration, replacement, upgrade and secondary development.
3.Customized Design & Manufacturing
We provide professional customized services for optical parameters, mechanical structure, installation interface, software protocol and housing to meet customer-specific application requirements.
